[2% off $567.00 ] LS ELECTRIC XGB PLC, 24 VDC REQUIRED, ET
$555.66USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

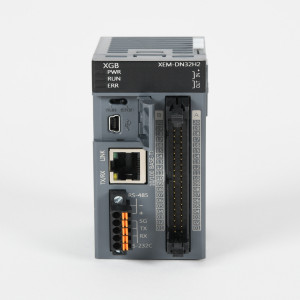

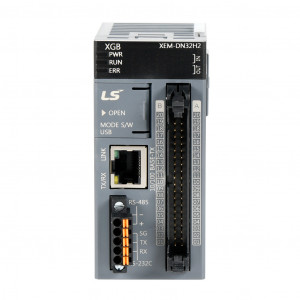

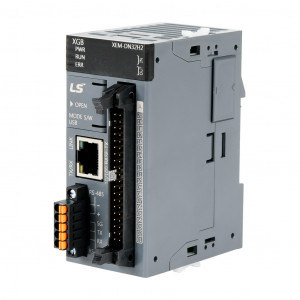

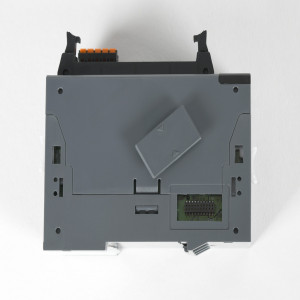

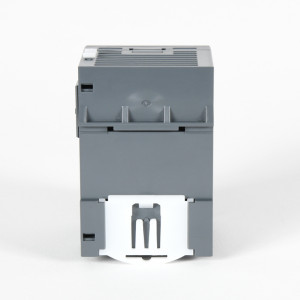

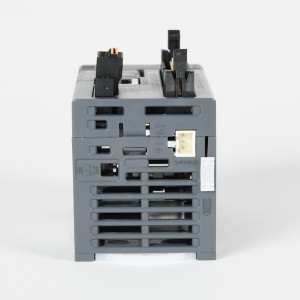

LS ELECTRIC XGB PLC, 24 VDC REQUIRED, ET
Documentos:
Fecha Entrega:
Precio (no incluye IVA):
$555.66USD
Atributos del producto
| Brand | LS Electric XGB |
|---|---|
| Item | PLC |
| Total Memory | 544 KB |
| Program Memory | 384 KB |
| User Data Memory | 160 KB |
| Programming Language | Ladder, structured text, sequential function chart and instruction list |
| Programming Software | XG5000 programming software v4.7 or later |
|---|---|
| Communication Port and Connection Type(s) |
|
| Port Protocol(s) |
|
| Port Speed(s) |
|
| Real Time Clock/Calendar | Yes |
| Retentive Memory | Yes |
| Battery Backup | No |
| Maximum Expansion Modules Allowed | 7 |
| External Power Requirement | 24 VDC |
| Number of Discrete Input Points | 16 |
| Nominal Input Voltage | 24 VDC |
| Voltage Type | DC |
| Discrete Input Type | Sinking/sourcing |
| Number of Non-Isolated Discrete Input Commons | 1 |
| Number of Points per Discrete Input Common | 16 |
| Frequency Response | 200 kHz |
| Number of Discrete Output Points | 16 |
| Nominal Output Voltage | 12-24 VDC |
| Discrete Output Type | Sinking |
| Load Current | (12) 0.1A/point, (4) 0.5A/point |
| Number of Non-Isolated Discrete Output Commons | 1 |
| Number of Points per Discrete Output Common | 16 |
| Maximum Switching Frequency | 200 kHz |
| Maximum Number of PID Loops | 16 |
| Number of High-Speed Capable Input Points | 4 |
| High-Speed Counter(s) |
|
| Frequency Measurement |
|
| Interrupt(s) |
|
| Number of High-Speed Capable Output Points | 4 |
| Output Pulse Mode(s) |
|
| Axis Profile(s) |
|
| Includes | 3-wire power cable and 5-pin serial communication terminal block |
| Requires | XTB-40H terminal block and C40HH-xxSB-XBI cable |
