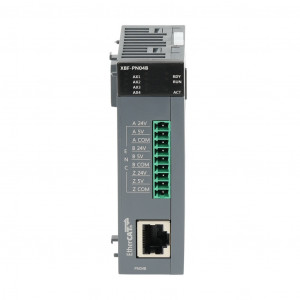

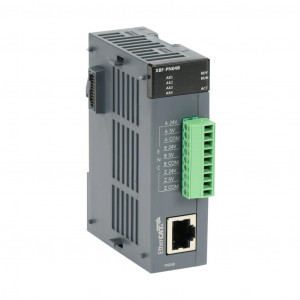

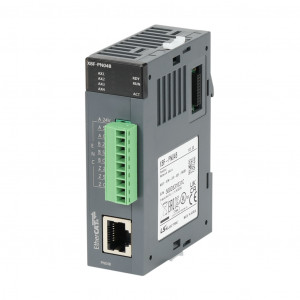

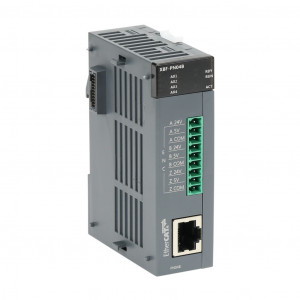

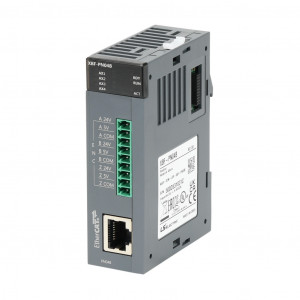

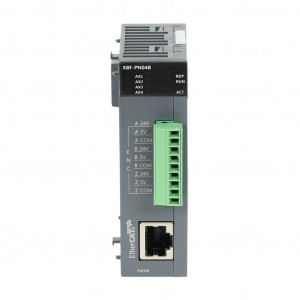

XBF-PN04B

[2% off $322.00 ] LS ELECTRIC XGB 4-AXIS POSITIONING MODUL

$315.56USD

Precio no incluye IVA

DESCUENTO EXCLUSIVO TIENDA EN LINEA
LS ELECTRIC XGB 4-AXIS POSITIONING MODULE, ETHERCAT PROTOCOL, 1 HIGH-SPEED INPUT POINT(S), SINKING/LINE DRIVER (DIFFERENTIAL), 1-CHANNEL, DIFFERENTIAL AND SINGLE-ENDED ENCODER INPUT(S), (1) ETHERNET 100BASE-TX (RJ45) PORT(S). FOR USE WITH LS ELECTRIC XEM-DX32HX PLCS.

Modelo: XBF-PN04B

Documentos:

XBF-PN04B 2D Drawing

LS Electric EtherCAT Tutorial

LS Servo Systems Brochure

XGB Module Firmware

EtherCAT Module Installation Guide

Interactive Guide

EtherCAT Module User Manual

Product Cut Sheet

Example Application Directory

XG5000/XG-PM PLC Programming Software

XBF-PN04B STP 3D Model

Technical Specifications

ENVIO GRATIS en compras mayores a $650.00 USD.

1 AÑO de Garantía SDI

Fecha Entrega:

Debug Url: "https://proyectos.sdindustrial.com.mx/apps/tienda/StockAutomation/fechaentrega.php?vcModelo=XBF-PN04B"

Debug Cantidad: "78"

Debug Mensaje: "Disponible"

Debug FechaEmbarque: "Viernes, 31 de Octubre de 2025"

Debug Fabricante: "AutomationDirect"

Debug idFabricante: "471"

Debug idProveedor: "106"

Viernes, 31 de Octubre de 2025

											*** Condición ejecutada: Entró en Disponible + AutomationDirect ***
											*** ocultaCompra:  ***

Precio (no incluye IVA):

$315.56USD

Cantidad:

Atributos Arriba

Atributos del producto

Brand	LS Electric XGB
Item	4-axis positioning module
Number of Ports	1
Communication Port and Connection Type(s)	<ul class="techattribute"><li>(1) Ethernet 100Base-TX (RJ45)</li></ul>
Port Protocol(s)	<ul class="techattribute"><li>EtherCAT Master (CANopen over EtherCAT)</li></ul>
Port Speed(s)	<ul class="techattribute"><li>100 Mbps auto-detect</li></ul>

Number of High-Speed Capable Input Points	1
Nominal Input Voltage	5-24 VDC
Discrete Input Type	Sinking/line driver (differential)
Number of Isolated Input Commons	3
Number Of Input Channels	1
Encoder Input Type	Receiver (differential) and NPN open collector encoder input
High-Speed Counter(s)	up to (1) quadrature (A and B) counter up to (1) quadrature (A and B with Z) counter
Output Pulse Mode(s)	up to (4) EtherCAT axes up to (4) virtual EtherCAT axes
Axis Profile(s)	relative/absolute positioning velocity mode trapezoid jerk registration homing jogging electronic gearing camming linear mode rotary mode motion sequence linear interpolation ellipse interpolation helical interpolation
For Use With	LS Electric XEM-Dx32Hx PLCs
Includes	(1) 9-pin terminal block
Programming Software	XG5000 programming software v4.7 or later
