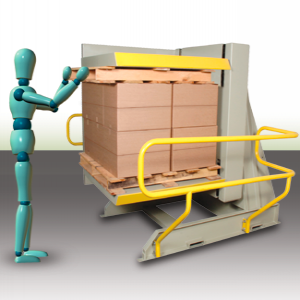

SOUTHWORTH PALLET ROTATOR- CAPACITY 4,400 LBS EVENLY DISTRIBUTED.- OVERALL DIMENSIONS 96'' WIDE X 85'' DEPTH X 89'' HIGH. NOTE: THIS INCLUDES TURNING DIAMETER.- MAX.LOAD SIZE 48'' WIDE X 48'' DEEP X 60'' HIGH- MIN. LOAD SIZE 36'' WIDE X 30'' DEEP X 32'' HIGH- MAX. CLAMP OPENING 60''- MIN. CLAMP OPENING 30''- CLAMP SPEED 11 SECONDS FOR FULL STROKE, 15 SECONDS FOR UNCLAMPING FULL STROKE.- ROTATION SPEED APPROXIMATELY 18 SECONDS FOR 180-DEGREE ROTATION CLOCKWISE.- CLAMP ACTUATION TWO DOUBLE‐ACTING HYDRAULIC CYLINDERS WITH CHAIN EQUALIZATION SYSTEM.- CLAMPING ACTION IS TO THE CENTER OF THE UNIT. CLAMPING FORCE IS ADJUSTABLE FROM 1000 LBS TO 6000 LBS.- ROTATE ACTUATION LARGE DIAMETER, HEAVY DUTY, TURRET BEARING, DRIVEN BY A DOUBLE ACTING HYDRAULIC CYLINDER AND MECHANICAL LINKAGE WITH DUAL COUNTER‐BALANCE VALVES FOR SMOOTH ACTION.- POWER UNIT INTERNALLY MOUNTED 3.2 HP INTERMITTENT DUTY MOTOR WITH HYDRAULIC PUMP, TWO 4‐WAY DIRECTIONAL VALVES (ONE FOR CLAMPING, ONE FOR ROTATING), AND COUNTER‐BALANCE VALVES.- PRIMARY VOLTAGE 460/3/60.- CONTROL VOLTAGE 115/1/60- CONTROL FLOOR MOUNTED STANCHION, 5‐BUTTON MOMENTARY CONTACT PUSHBUTTON ON A 15-FOOT CORD. CLAMP / UNCLAMP / ROTATE CLOCKWISE / ROTATE COUNTER‐CLOCKWISE / E‐STOP.- CONTROL PANEL CONTROL ENCLOSURE WITH MOTOR STARTER WITH OVERLOAD RELAY AND TRANSFORMER PREWIRED AND MOUNTED TO FRAME BESIDE POWER UNIT.- FINISH SOUTHWORTH BEIGE SELF‐PRIMING MACHINERY ENAMEL.

SOUTHWORTH PALLET ROTATOR- CAPACITY 4,400 LBS EVENLY DISTRIBUTED.- OVERALL DIMENSIONS 96'' WIDE X 85'' DEPTH X 101" HIGH. NOTE: THIS INCLUDES TURNING DIAMETER.- MAX.LOAD SIZE 48'' WIDE X 48'' DEEP X 72'' HIGH- MIN. LOAD SIZE 36'' WIDE X 30'' DEEP X 32'' HIGH- MAX. CLAMP OPENING 72''- MIN. CLAMP OPENING 30''- CLAMP SPEED 11 SECONDS FOR FULL STROKE, 15 SECONDS FOR UNCLAMPING FULL STROKE.- ROTATION SPEED APPROXIMATELY 18 SECONDS FOR 180-DEGREE ROTATION CLOCKWISE.- CLAMP ACTUATION TWO DOUBLE‐ACTING HYDRAULIC CYLINDERS WITH CHAIN EQUALIZATION SYSTEM.- CLAMPING ACTION IS TO THE CENTER OF THE UNIT. CLAMPING FORCE IS ADJUSTABLE FROM 1000 LBS TO 6000 LBS.- ROTATE ACTUATION LARGE DIAMETER, HEAVY DUTY, TURRET BEARING, DRIVEN BY A DOUBLE ACTING HYDRAULIC CYLINDER AND MECHANICAL LINKAGE WITH DUAL COUNTER‐BALANCE VALVES FOR SMOOTH ACTION.- POWER UNIT INTERNALLY MOUNTED 3.2 HP INTERMITTENT DUTY MOTOR WITH HYDRAULIC PUMP, TWO 4‐WAY DIRECTIONAL VALVES (ONE FOR CLAMPING, ONE FOR ROTATING), AND COUNTER‐BALANCE VALVES.- PRIMARY VOLTAGE 460/3/60.- CONTROL VOLTAGE 115/1/60- CONTROL FLOOR MOUNTED STANCHION, 5‐BUTTON MOMENTARY CONTACT PUSHBUTTON ON A 15-FOOT CORD. CLAMP / UNCLAMP / ROTATE CLOCKWISE / ROTATE COUNTER‐CLOCKWISE / E‐STOP.- CONTROL PANEL CONTROL ENCLOSURE WITH MOTOR STARTER WITH OVERLOAD RELAY AND TRANSFORMER PREWIRED AND MOUNTED TO FRAME BESIDE POWER UNIT.- FINISH SOUTHWORTH BEIGE SELF‐PRIMING MACHINERY ENAMEL.

SOUTHWORTH PALLET ROTATOR- CAPACITY 4,400 LBS EVENLY DISTRIBUTED.- OVERALL DIMENSIONS 96'' WIDE X 85'' DEPTH X 113" HIGH. NOTE: THIS INCLUDES TURNING DIAMETER.- MAX.LOAD SIZE 48'' WIDE X 48'' DEEP X 84'' HIGH- MIN. LOAD SIZE 36'' WIDE X 30'' DEEP X 32'' HIGH- MAX. CLAMP OPENING 84''- MIN. CLAMP OPENING 30''- CLAMP SPEED 11 SECONDS FOR FULL STROKE, 15 SECONDS FOR UNCLAMPING FULL STROKE.- ROTATION SPEED APPROXIMATELY 18 SECONDS FOR 180-DEGREE ROTATION CLOCKWISE.- CLAMP ACTUATION TWO DOUBLE‐ACTING HYDRAULIC CYLINDERS WITH CHAIN EQUALIZATION SYSTEM.- CLAMPING ACTION IS TO THE CENTER OF THE UNIT. CLAMPING FORCE IS ADJUSTABLE FROM 1000 LBS TO 6000 LBS.- ROTATE ACTUATION LARGE DIAMETER, HEAVY DUTY, TURRET BEARING, DRIVEN BY A DOUBLE ACTING HYDRAULIC CYLINDER AND MECHANICAL LINKAGE WITH DUAL COUNTER‐BALANCE VALVES FOR SMOOTH ACTION.- POWER UNIT INTERNALLY MOUNTED 3.2 HP INTERMITTENT DUTY MOTOR WITH HYDRAULIC PUMP, TWO 4‐WAY DIRECTIONAL VALVES (ONE FOR CLAMPING, ONE FOR ROTATING), AND COUNTER‐BALANCE VALVES.- PRIMARY VOLTAGE 460/3/60.- CONTROL VOLTAGE 115/1/60- CONTROL FLOOR MOUNTED STANCHION, 5‐BUTTON MOMENTARY CONTACT PUSHBUTTON ON A 15-FOOT CORD. CLAMP / UNCLAMP / ROTATE CLOCKWISE / ROTATE COUNTER‐CLOCKWISE / E‐STOP.- CONTROL PANEL CONTROL ENCLOSURE WITH MOTOR STARTER WITH OVERLOAD RELAY AND TRANSFORMER PREWIRED AND MOUNTED TO FRAME BESIDE POWER UNIT.- FINISH SOUTHWORTH BEIGE SELF‐PRIMING MACHINERY ENAMEL.
