[16% off $216.00 ] DURAPULSE GS10 SERIES AC MICRO DRIVE, EN
$181.44USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

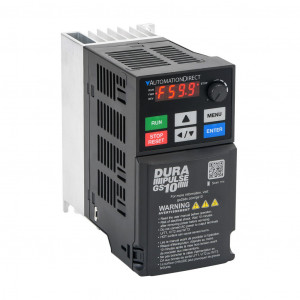

DURAPULSE GS10 SERIES AC MICRO DRIVE, EN
Modelo: GS13N-41P0
Documentos:
Viernes, 29 de Noviembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Martes, 03 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$181.44USD
Atributos del producto
| Brand | DURApulse |
|---|---|
| Item | Drive |
| Controller Type | Micro |
| Series | GS10 |
| Voltage Type | AC |
| Nominal Drive Input Voltage | 460 VAC |
| Nominal Drive Output Voltage | 460 VAC |
|---|---|
| Number of Input Phases | 3 |
| Number of Output Phases | 3 |
| Horsepower By Phase | 1hp with 3-phase input |
| Amperage Rating | 2.7A |
| Variable Torque Amperage Rating | 3A |
| Control Mode | SVC or V/Hz |
| Safe Torque Off (STO) | No |
| Temperature Rating | -20 to 50 deg C |
| Enclosure Type | Enclosed |
| IP Rating | IP20 |
| Mounting | 35mm DIN rail, panel or wall |
| Frame Size | A6 |
| Dynamic Braking | Integrated dynamic braking unit |
| Communication Port and Connection Type(s) |
|
| Port Protocol(s) |
|
| Port Speed(s) |
|
| Input Signal | 4-20 mA, voltage or potentiometer input |
| Output Type | PWM output |
| Reverse Capability | Built-in |
| Internally Bypassed | No |
| Carrier Frequency Range | 2-15 kHz |
| Output Frequency Range | 0.1-600 Hz |
| Number of Analog Input Channels | 1 |
| Number Of Input Channels | 1 |
| Analog Input Signal Type | Current/voltage |
| Number of Non-Isolated Analog Input Commons | 1 |
| Number of Points per Analog Input Common | 1 |
| Input Resolution | 12-bit |
| Input Current Signal Range | 0-20 mA, 4-20 mA |
| Input Voltage Signal Range | 0-10 VDC |
| Number of Analog Output Channels | 1 |
| Number Of Output Channels | 1 |
| Analog Output Signal Type | Voltage |
| Number of Non-Isolated Analog Output Commons | 1 |
| Number of Points per Analog Output Common | 1 |
| Output Resolution | 12-bit |
| Output Voltage Signal Range | 0-10 VDC |
| Number of Discrete Input Points | 5 |
| Nominal Discrete Input Voltage | 24 VDC |
| Discrete Input Type | Sinking/sourcing |
| Number of Non-Isolated Discrete Input Commons | 2 |
| Number of Points per Discrete Input Common | 3 |
| Number of Discrete Output Points | 2 |
| Nominal Discrete Output Voltage | 240 VAC and 48 VDC |
| Discrete Output Type | Relay/sinking/sourcing |
| Relay Configuration | (1) Form C (SPDT) relay |
| Number of Non-Isolated Discrete Output Commons | 1 |
| Number of Isolated Discrete Output Commons | 1 |
| Number of Points per Discrete Output Common | 1 |
| Load Current | 3A/point relay, 50 mA/point discrete |
| Fuse Type | User-supplied external fuse |
| SCCR Rating | 100kA SCCR |
| Connector Type | Spring clamp terminals |
| For Use With | 3-phase induction and permanent magnet AC motors |
