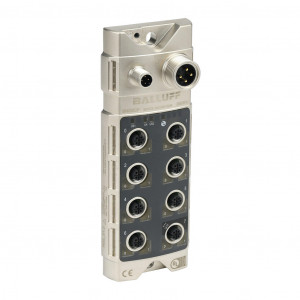

BALLUFF IO-LINK HUB, UP TO (16) DISCRETE
$433.00USD
Precio no incluye IVABALLUFF IO-LINK HUB, UP TO (16) DISCRETE I/O POINTS, UP TO (16) DISCRETE INPUT POINTS, (8) 5-PIN M12 A-CODED PORTS, 24 VDC, IO-LINK V1.1, IO-LINK CLASS A DEVICE, 9A, 2A/PORT, IP67. REQUIRES IO-LINK MASTER.
Modelo: BNI00CP
Fecha Entrega:
Precio (no incluye IVA):
$433.00USD
Atributos del producto
| Brand | Balluff |
|---|---|
| Item | IO-Link hub |
| Number of Discrete I/O Points | Up to (16) |
| Number of Discrete Input Points | Up to (16) |
| Discrete I/O Port Type(s) | (8) 5-pin M12 A-coded |
| Nominal Input Voltage | 24 VDC |
| Discrete Input Type | Sinking |
|---|---|
| Number of Non-Isolated Discrete Input Commons | 1 |
| Number of Points per Discrete Input Common | 16 |
| Nominal Output Voltage | 24 VDC |
| Discrete Output Type | Sourcing |
| Number of Non-Isolated Discrete Output Commons | 1 |
| Number of Points per Discrete Output Common | 16 |
| IO-Link Version | IO-Link v1.1 |
| Communication Port and Connection Type(s) |
|
| Port Protocol(s) |
|
| Port Speed(s) |
|
| External Power Requirement | 24 VDC |
| Amperage Rating | 9A |
| Load Current | 2A/port |
| Indicator | LED |
| Housing Material | Die-cast zinc nickel-plated |
| IP Rating | IP67 |
| Temperature Rating | -5 to 55 deg C |
| Includes | Marking tags |
| Requires | IO-Link master |
| Programming Software | None, configure via IO-Link master |
