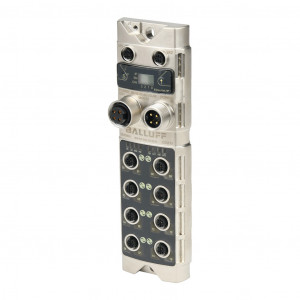

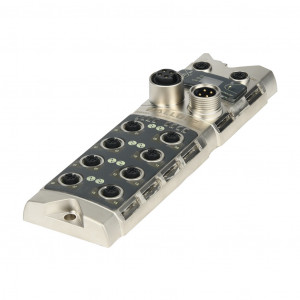

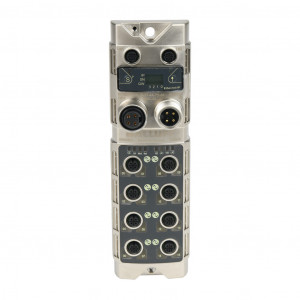

BALLUFF ETHERNET/IP IO-LINK MASTER, (8)
$839.00USD
Precio no incluye IVABALLUFF ETHERNET/IP IO-LINK MASTER, (8) IO-LINK CAPABLE I/O POINTS, UP TO (16) DISCRETE I/O POINTS, IO-LINK V1.1.3, 9A, 2A/PORT, DIE-CAST ZINC NICKEL-PLATED HOUSING, IP67, -5 TO 70 DEG C, MULTI-LINE LCD DISPLAY.
Modelo: BNI006A
Este producto incluye
Envío gratis
* Aplican restricciones
Fecha Entrega:
Precio (no incluye IVA):
$839.00USD
Atributos del producto
| Brand | Balluff |
|---|---|
| Item | IO-Link master |
| Number of IO-Link Capable I/O Points | 8 |
| Number of Discrete I/O Points | Up to (16) |
| Discrete I/O Port Type(s) | (8) 5-pin M12 A-coded |
| Nominal Input Voltage | 24 VDC |
| Discrete Input Type | Sinking |
|---|---|
| Number of Non-Isolated Discrete Input Commons | 1 |
| Number of Points per Discrete Input Common | 16 |
| Nominal Output Voltage | 24 VDC |
| Discrete Output Type | Sourcing |
| Number of Non-Isolated Discrete Output Commons | 1 |
| Number of Points per Discrete Output Common | 16 |
| Communication Port and Connection Type(s) |
|
| Port Protocol(s) |
|
| Port Speed(s) |
|
| IO-Link Version | IO-Link v1.1.3 |
| Line Side Port(s) | (1) 7/8in - 16 UN2 thread nut 4-pin male axial |
| Load Side Port(s) | (1) 7/8in - 16 UN2 thread nut 4-pin female axial |
| External Power Requirement | 24 VDC |
| Amperage Rating | 9A |
| Load Current | 2A/port |
| Display Type | Multi-line LCD display |
| Indicator | LED |
| Housing Material | Die-cast zinc nickel-plated |
| IP Rating | IP67 |
| Temperature Rating | -5 to 70 deg C |
| Includes | Marking tags |
| Programming Software | None, configure via Internet browser |
