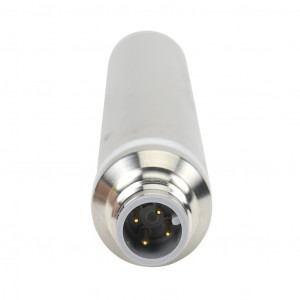

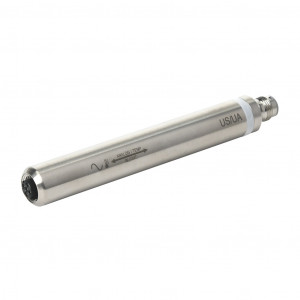

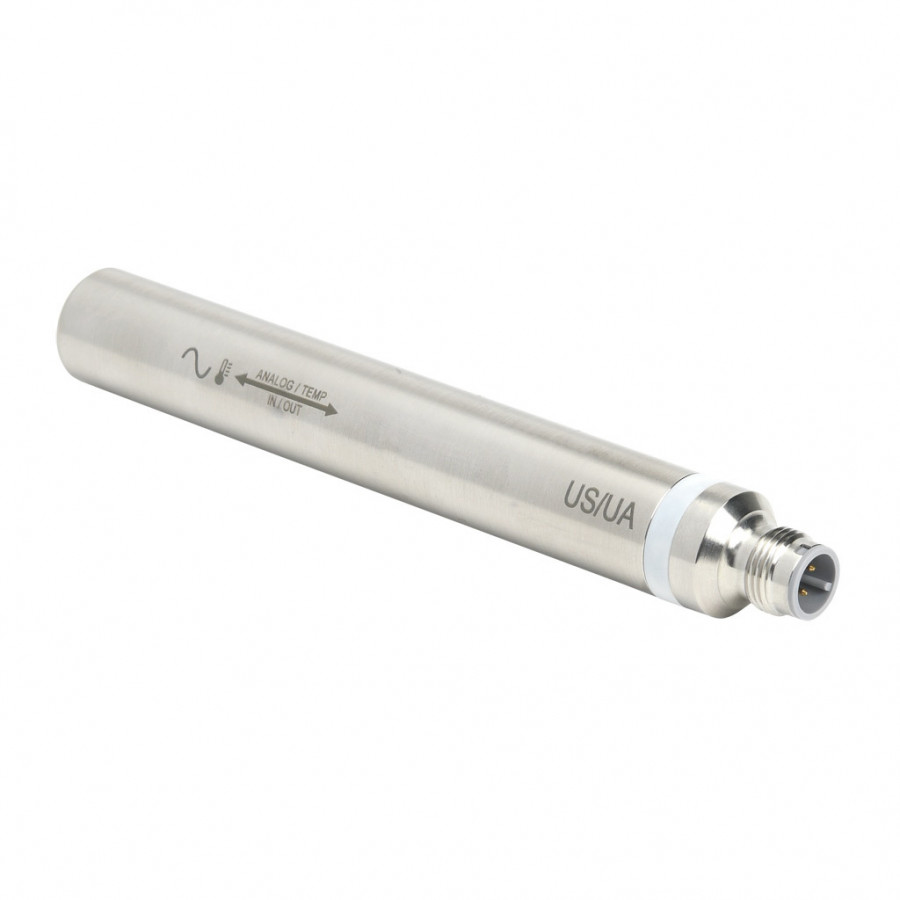

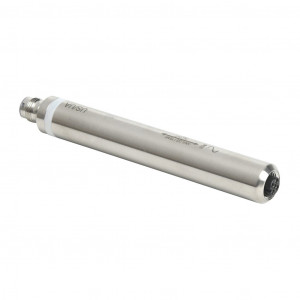

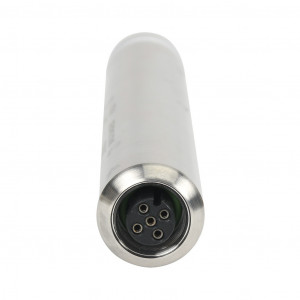

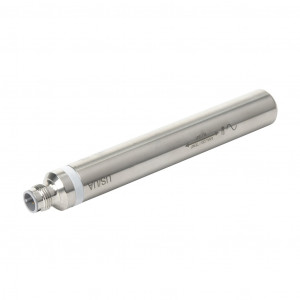

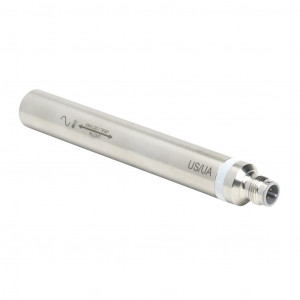

BALLUFF TEMPERATURE/ANALOG COMBO CONVERT
$305.00USD
Precio no incluye IVABALLUFF TEMPERATURE/ANALOG COMBO CONVERTER, 1-CHANNEL, CURRENT/VOLTAGE/RTD/THERMOCOUPLE, 16-BIT, INPUT RTD TYPE(S): PT100 AND PT1000, INPUT THERMOCOUPLE TYPE(S): J, K, IO-LINK V1.1, STAINLESS STEEL HOUSING, IP65 AND IP67. REQUIRES IO-LINK MASTER.
Marca: BALLUFFModelo: BNI00C6
Entrega estimada:
Martes, 22 De Julio De 2025
* Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$305.00USD
Atributos del producto
| Brand | Balluff |
|---|---|
| Item | Combo converter |
| I/O Module Type | Temperature/analog |
| Number Of Channels | 1 |
| Number Of Input Channels | 1 |
| Input Signal Type(s) | Current/voltage/RTD/thermocouple |
| Analog Input Signal Type | Current, voltage, RTD and thermocouple |
|---|---|
| Input RTD Signal Types | Pt100 and Pt1000 |
| Input Thermocouple Signal Type | J, K |
| Number of Non-Isolated Analog Input Commons | 1 |
| Number of Points per Analog Input Common | 1 |
| Resolution | 16-bit |
| Input Resolution | 16-bit |
| Input Current Signal Range | 0-20 mA and 4-20 mA |
| Input Voltage Signal Range | 0-5 VDC, 0-10 VDC, +/- 5 VDC and +/- 10 VDC |
| Output Signal Type | Current/voltage |
| Analog Output Signal Type | Current/voltage |
| Number of Non-Isolated Analog Output Commons | 1 |
| Number Of Output Channels | 1 |
| Number of Points per Analog Output Common | 1 |
| Output Current Signal Range | 0-20 mA and 4-20 mA |
| Output Resolution | 16-bit |
| Output Voltage Signal Range | 0-5 VDC, 0-10 VDC, +/- 5 VDC and +/- 10 VDC |
| Analog I/O Port Type(s) | (1) 5-pin M12 A-coded |
| Communication Port and Connection Type(s) |
|
| Port Protocol(s) |
|
| Port Speed(s) |
|
| IO-Link Version | IO-Link v1.1 |
| External Power Requirement | 24 VDC |
| Housing Material | Stainless steel |
| IP Rating | IP65 and IP67 |
| Requires | IO-Link master |
| Programming Software | None, configure via IO-Link master |
