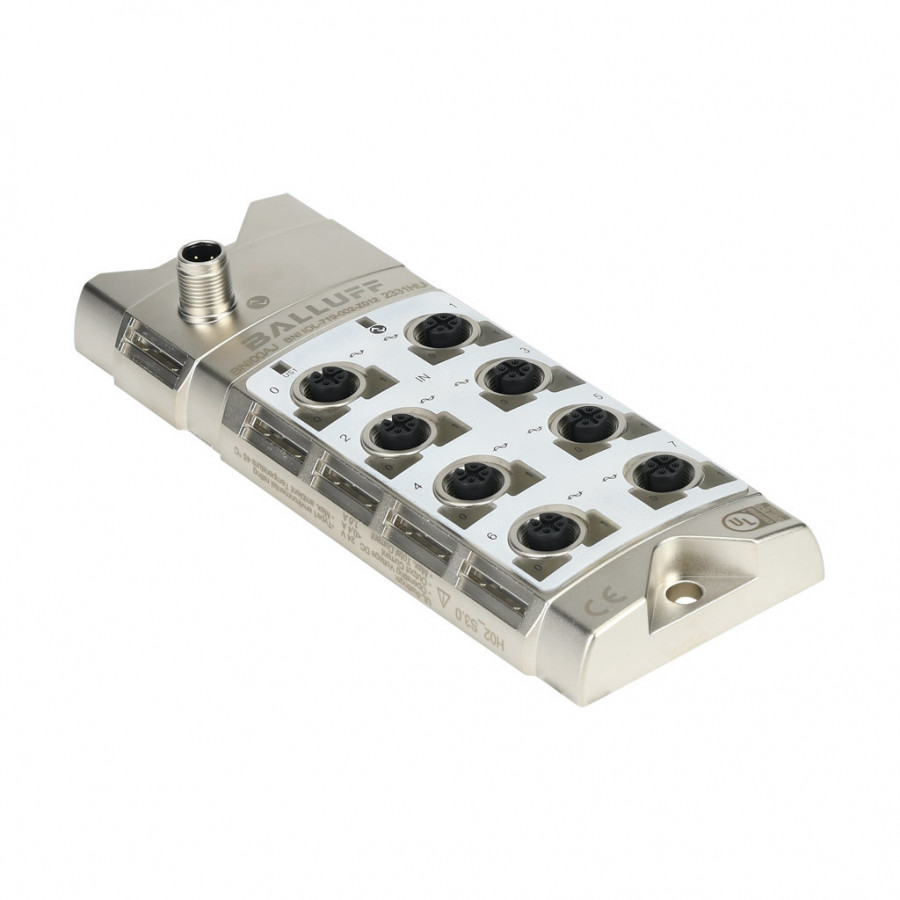

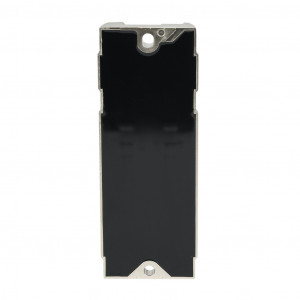

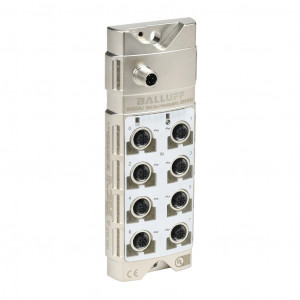

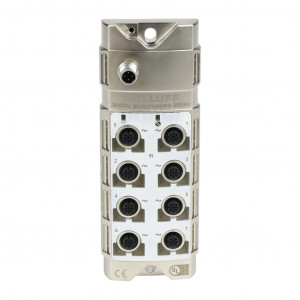

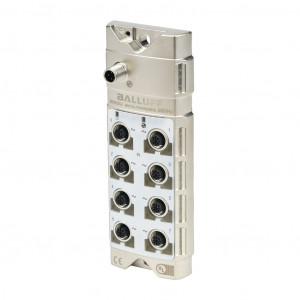

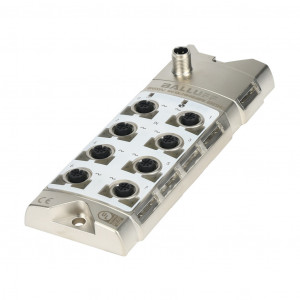

BALLUFF TEMPERATURE/ANALOG IO-LINK HUB,
$555.00USD
Precio no incluye IVABALLUFF TEMPERATURE/ANALOG IO-LINK HUB, UP TO (8) ANALOG INPUT CHANNEL(S), CURRENT/VOLTAGE/RTD/THERMOCOUPLE, 16-BIT, INPUT RTD TYPE(S): PT100 AND PT1000, INPUT THERMOCOUPLE TYPE(S): J, K, IO-LINK V1.1, IP67. REQUIRES IO-LINK MASTER.
Modelo: BNI00AJ
Fecha Entrega:
Precio (no incluye IVA):
$555.00USD
Atributos del producto
| Brand | Balluff |
|---|---|
| Item | IO-Link hub |
| I/O Module Type | Temperature/analog |
| Number of Analog Input Channels | Up to (8) |
| Analog I/O Port Type(s) | (8) 5-pin M12 A-coded |
| Analog Input Signal Type | Current, voltage, RTD and thermocouple |
| Input Signal Type(s) | Current/voltage/RTD/thermocouple |
|---|---|
| Input RTD Signal Types | Pt100 and Pt1000 |
| Input Thermocouple Signal Type | J, K |
| Number of Points per Analog Input Common | 8 |
| Input Resolution | 16-bit |
| Resolution | 16-bit |
| Input Current Signal Range | 0-20 mA and 4-20 mA |
| Input Voltage Signal Range | +/- 5 VDC, 0-5 VDC, +/- 10 VDC, 0-10 VDC and 5-10 VDC |
| IO-Link Version | IO-Link v1.1 |
| Communication Port and Connection Type(s) |
|
| Port Protocol(s) |
|
| Port Speed(s) |
|
| Indicator | LED |
| Housing Material | Die-cast zinc nickel-plated |
| IP Rating | IP67 |
| Temperature Rating | -5 to 70 deg C |
| Includes | Marking tags |
| Requires | IO-Link master |
| Programming Software | None, configure via IO-Link master |
