IRONHORSE FAN SHROUD, REPLACEMENT. FOR USE WITH 56C FRAME IRONHORSE MTR SERIES MOTORS. NOT COMPATIBLE WITH MTR2 SERIES MOTORS.

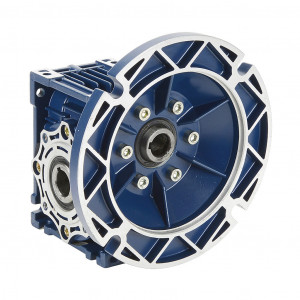

IRONHORSE MEDIUM-DUTY WORM GEARBOX, 10:1 RATIO, 56C-FACE INPUT, HOLLOW, 0.625IN DIAMETER OUTPUT SHAFT, NOMINAL 0.5HP AT 1.0 SF, 150 LB-IN MECHANICAL OUTPUT TORQUE, 30MM CENTER DISTANCE, CAST ALUMINUM HOUSING, TOP AND BOTTOM MOUNT.

IRONHORSE MEDIUM-DUTY WORM GEARBOX, 20:1 RATIO, 56C-FACE INPUT, HOLLOW, 0.625IN DIAMETER OUTPUT SHAFT, NOMINAL 0.25HP AT 1.0 SF, 150 LB-IN MECHANICAL OUTPUT TORQUE, 30MM CENTER DISTANCE, CAST ALUMINUM HOUSING, TOP AND BOTTOM MOUNT.

IRONHORSE MEDIUM-DUTY WORM GEARBOX, 30:1 RATIO, 56C-FACE INPUT, HOLLOW, 0.625IN DIAMETER OUTPUT SHAFT, NOMINAL 0.25HP AT 1.0 SF, 177 LB-IN MECHANICAL OUTPUT TORQUE, 30MM CENTER DISTANCE, CAST ALUMINUM HOUSING, TOP AND BOTTOM MOUNT.

IRONHORSE MEDIUM-DUTY WORM GEARBOX, 40:1 RATIO, 56C-FACE INPUT, HOLLOW, 0.625IN DIAMETER OUTPUT SHAFT, NOMINAL 0.2HP AT 1.0 SF, 150 LB-IN MECHANICAL OUTPUT TORQUE, 30MM CENTER DISTANCE, CAST ALUMINUM HOUSING, TOP AND BOTTOM MOUNT.

IRONHORSE MEDIUM-DUTY WORM GEARBOX, 60:1 RATIO, 56C-FACE INPUT, HOLLOW, 0.625IN DIAMETER OUTPUT SHAFT, NOMINAL 0.12HP AT 1.0 SF, 142 LB-IN MECHANICAL OUTPUT TORQUE, 30MM CENTER DISTANCE, CAST ALUMINUM HOUSING, TOP AND BOTTOM MOUNT.

IRONHORSE OUTPUT FLANGE, FOR USE WITH ALUMINUM WGA-30M SERIES GEARBOXES. MOUNTING HARDWARE INCLUDED.

IRONHORSE TORQUE ARM, FOR USE WITH ALUMINUM WGA-30M SERIES GEARBOXES. MOUNTING HARDWARE INCLUDED.

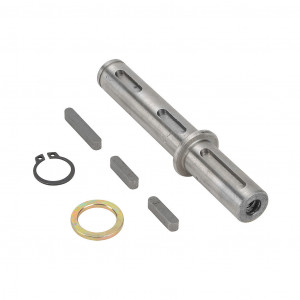

IRONHORSE GEARBOX SINGLE OUTPUT SHAFT, 0.625IN. FOR USE WITH ALUMINUM WGA-30M SERIES GEARBOXES. (3) KEYS, (1) SPACER AND (1) RETAINING RING INCLUDED.

IRONHORSE GEARBOX DOUBLE OUTPUT SHAFT, 0.625IN. FOR USE WITH ALUMINUM WGA-30M SERIES GEARBOXES. (4) KEYS, (2) SPACERS AND (2) RETAINING RINGS INCLUDED.

IRONHORSE OUTPUT COVER, FOR USE WITH ALUMINUM WGA-30M SERIES GEARBOXES. MOUNTING HARDWARE INCLUDED.

IRONHORSE MEDIUM-DUTY WORM GEARBOX, 10:1 RATIO, 56C-FACE INPUT, HOLLOW, 0.75IN DIAMETER OUTPUT SHAFT, NOMINAL 1HP AT 1.0 SF, 354 LB-IN MECHANICAL OUTPUT TORQUE, 40MM CENTER DISTANCE, CAST ALUMINUM HOUSING, TOP AND BOTTOM MOUNT.

IRONHORSE MEDIUM-DUTY WORM GEARBOX, 20:1 RATIO, 56C-FACE INPUT, HOLLOW, 0.75IN DIAMETER OUTPUT SHAFT, NOMINAL 0.5HP AT 1.0 SF, 345 LB-IN MECHANICAL OUTPUT TORQUE, 40MM CENTER DISTANCE, CAST ALUMINUM HOUSING, TOP AND BOTTOM MOUNT.

IRONHORSE MEDIUM-DUTY WORM GEARBOX, 30:1 RATIO, 56C-FACE INPUT, HOLLOW, 0.75IN DIAMETER OUTPUT SHAFT, NOMINAL 0.5HP AT 1.0 SF, 389 LB-IN MECHANICAL OUTPUT TORQUE, 40MM CENTER DISTANCE, CAST ALUMINUM HOUSING, TOP AND BOTTOM MOUNT.

IRONHORSE MEDIUM-DUTY WORM GEARBOX, 40:1 RATIO, 56C-FACE INPUT, HOLLOW, 0.75IN DIAMETER OUTPUT SHAFT, NOMINAL 0.33HP AT 1.0 SF, 363 LB-IN MECHANICAL OUTPUT TORQUE, 40MM CENTER DISTANCE, CAST ALUMINUM HOUSING, TOP AND BOTTOM MOUNT.

IRONHORSE MEDIUM-DUTY WORM GEARBOX, 60:1 RATIO, 56C-FACE INPUT, HOLLOW, 0.75IN DIAMETER OUTPUT SHAFT, NOMINAL 0.25HP AT 1.0 SF, 319 LB-IN MECHANICAL OUTPUT TORQUE, 40MM CENTER DISTANCE, CAST ALUMINUM HOUSING, TOP AND BOTTOM MOUNT.
