[3% off $199.00 ] IRONHORSE MEDIUM-DUTY WORM GEARBOX, 20:1
$193.03USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

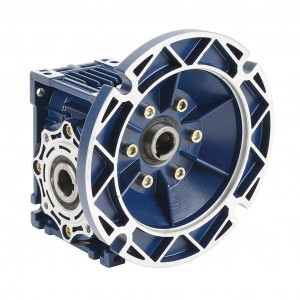

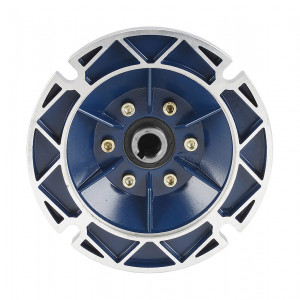

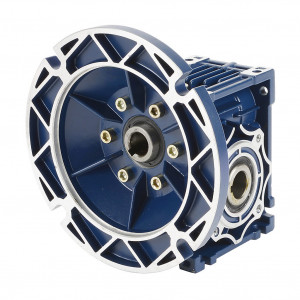

IRONHORSE MEDIUM-DUTY WORM GEARBOX, 20:1 RATIO, 56C-FACE INPUT, HOLLOW, 0.75IN DIAMETER OUTPUT SHAFT, NOMINAL 0.5HP AT 1.0 SF, 345 LB-IN MECHANICAL OUTPUT TORQUE, 40MM CENTER DISTANCE, CAST ALUMINUM HOUSING, TOP AND BOTTOM MOUNT.
Fecha Entrega:
Lunes, 29 de Diciembre de 2025
Precio (no incluye IVA):
$193.03USD
Atributos del producto
| Brand | IronHorse |
|---|---|
| Item | Gearbox |
| Application | General purpose |
| Duty Rating | Medium-duty |
| Gearbox Type | Worm |
| Gear Ratio | 20 |
| Speed Rating | 1750 RPM input / 88 RPM output |
|---|---|
| Input Configuration | 56C-Face |
| Input Power Rating | Nominal 0.5hp at 1.0 SF |
| Output Configuration | Hollow |
| Output Shaft Diameter | 0.75in |
| Mechanical Output Torque | 345 lb-in |
| Thermal Output Torque | 345 lb-in |
| Center Distance | 40mm |
| Housing Material | Cast aluminum |
| Mounting | Top and bottom |
| Finish | Anti-corrosion epoxy paint |
| Lubrication Type | Pre-filled with lifetime synthetic lube |
| Oil Seal Type | Double-lip |
