[5% off $433.00 ] IRONHORSE MEDIUM-DUTY WORM GEARBOX, 40:1
$411.35USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

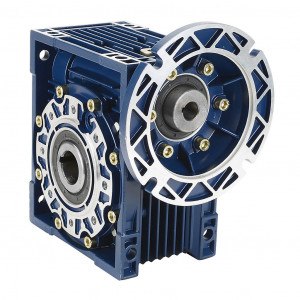

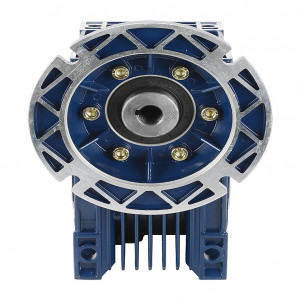

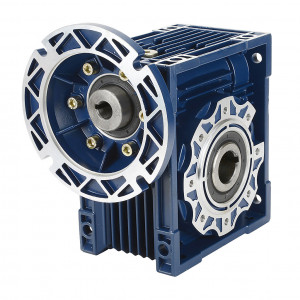

IRONHORSE MEDIUM-DUTY WORM GEARBOX, 40:1 RATIO, 56C-FACE INPUT, HOLLOW, 1.25IN DIAMETER OUTPUT SHAFT, NOMINAL 1.5HP AT 1.0 SF, 1947 LB-IN MECHANICAL OUTPUT TORQUE, 75MM CENTER DISTANCE, CAST ALUMINUM HOUSING, TOP AND BOTTOM MOUNT.
Modelo: WGA-75M-040-H1
Entrega estimada:
Jueves, 24 De Abril De 2025
* Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$411.35USD
Atributos del producto
| Brand | IronHorse |
|---|---|
| Item | Gearbox |
| Application | General purpose |
| Duty Rating | Medium-duty |
| Gearbox Type | Worm |
| Gear Ratio | 40 |
| Speed Rating | 1750 RPM input / 44 RPM output |
|---|---|
| Input Configuration | 56C-Face |
| Input Power Rating | Nominal 1.5hp at 1.0 SF |
| Output Configuration | Hollow |
| Output Shaft Diameter | 1.25in |
| Mechanical Output Torque | 1947 lb-in |
| Thermal Output Torque | 1947 lb-in |
| Center Distance | 75mm |
| Housing Material | Cast aluminum |
| Mounting | Top and bottom |
| Finish | Anti-corrosion epoxy paint |
| Lubrication Type | Pre-filled with lifetime synthetic lube |
| Oil Seal Type | Double-lip |
