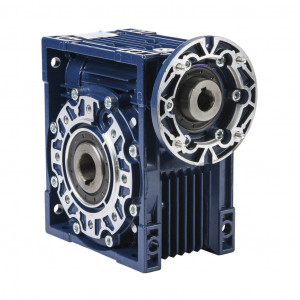

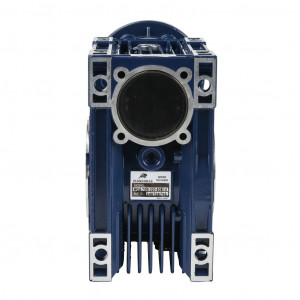

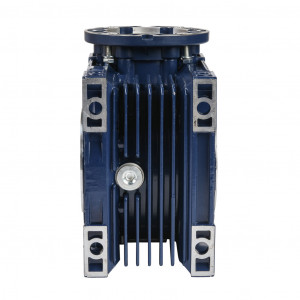

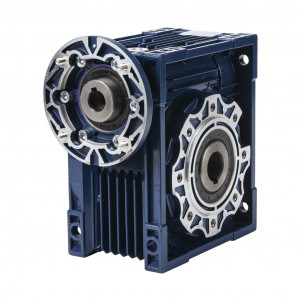

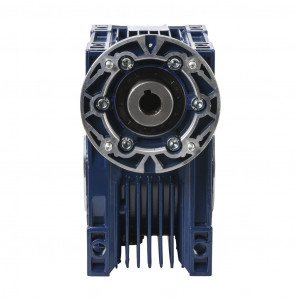

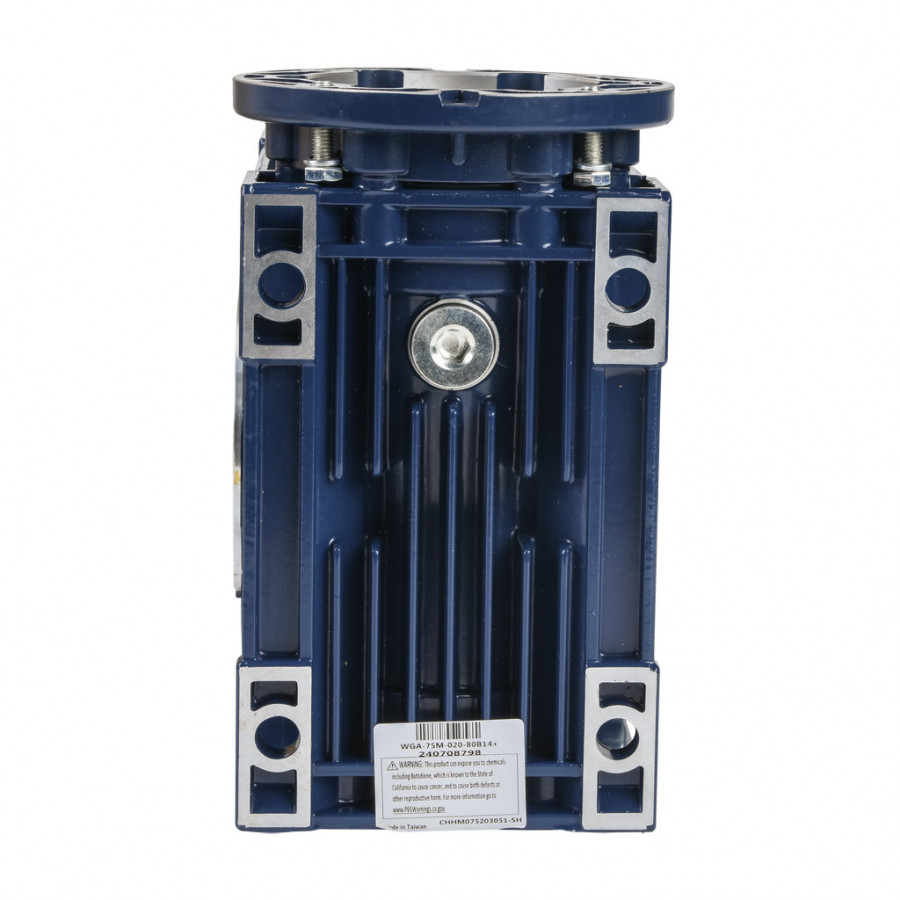

IRONHORSE MEDIUM-DUTY WORM GEARBOX, 20:1
$509.00USD
Precio no incluye IVAIRONHORSE MEDIUM-DUTY WORM GEARBOX, 20:1 RATIO, IEC 80B14 INPUT, HOLLOW, 28MM DIAMETER OUTPUT SHAFT, NOMINAL 3.24HP AT 1.0 SF, 1953 LB-IN MECHANICAL OUTPUT TORQUE, 75MM CENTER DISTANCE, CAST ALUMINUM HOUSING, TOP, BOTTOM AND BACK MOUNT.
Modelo: WGA-75M-020-80B14
Fecha Entrega:
Precio (no incluye IVA):
$509.00USD
Atributos del producto
| Brand | IronHorse |
|---|---|
| Item | Gearbox |
| Application | General purpose |
| Duty Rating | Medium-duty |
| Gearbox Type | Worm |
| Gear Ratio | 20 |
| Speed Rating | 1750rpm input / 88rpm output |
|---|---|
| Input Configuration | IEC 80B14 |
| Input Power Rating | Nominal 3.24hp at 1.0 SF |
| Output Configuration | Hollow |
| Gearbox Output Shaft Diameter | 28mm |
| Mechanical Output Torque | 1953 lb-in |
| Thermal Output Torque | 1953 lb-in |
| Center Distance | 75mm |
| Housing Material | Cast aluminum |
| Mounting | Top and bottom |
| Finish | Powder coat |
| Lubrication Type | Pre-filled with synthetic lube |
| Oil Seal Type | Double-lip |
| Includes | Motor mounting hardware |
