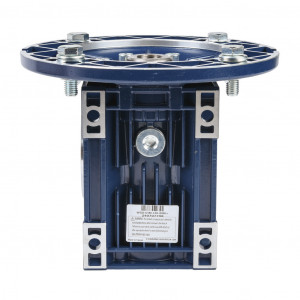

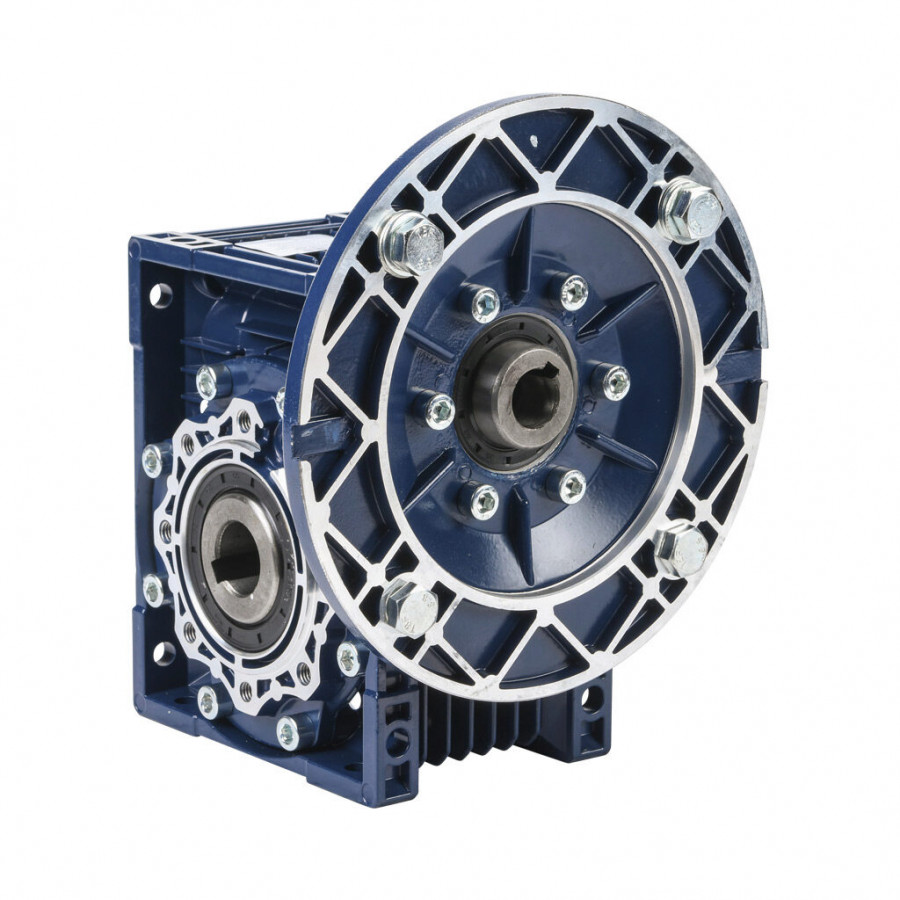

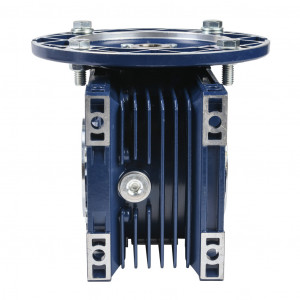

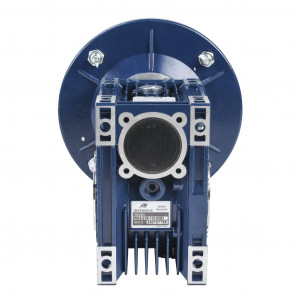

IRONHORSE MEDIUM-DUTY WORM GEARBOX, 100:
$349.00USD
Precio no incluye IVAIRONHORSE MEDIUM-DUTY WORM GEARBOX, 100:1 RATIO, IEC 80B5 INPUT, HOLLOW, 25MM DIAMETER OUTPUT SHAFT, NOMINAL 0.51HP AT 1.0 SF, 992 LB-IN MECHANICAL OUTPUT TORQUE, 63MM CENTER DISTANCE, CAST ALUMINUM HOUSING, TOP, BOTTOM AND BACK MOUNT.
Modelo: WGA-63M-100-80B5
Fecha Entrega:
Precio (no incluye IVA):
$349.00USD
Atributos del producto
| Brand | IronHorse |
|---|---|
| Item | Gearbox |
| Application | General purpose |
| Duty Rating | Medium-duty |
| Gearbox Type | Worm |
| Gear Ratio | 100 |
| Speed Rating | 1750rpm input / 17.5rpm output |
|---|---|
| Input Configuration | IEC 80B5 |
| Input Power Rating | Nominal 0.51hp at 1.0 SF |
| Output Configuration | Hollow |
| Gearbox Output Shaft Diameter | 25mm |
| Mechanical Output Torque | 992 lb-in |
| Thermal Output Torque | 992 lb-in |
| Center Distance | 63mm |
| Housing Material | Cast aluminum |
| Mounting | Top and bottom |
| Finish | Powder coat |
| Lubrication Type | Pre-filled with synthetic lube |
| Oil Seal Type | Double-lip |
| Includes | Motor mounting hardware |
