[3% off $271.00 ] IRONHORSE MEDIUM-DUTY WORM GEARBOX, 20:1
$262.87USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

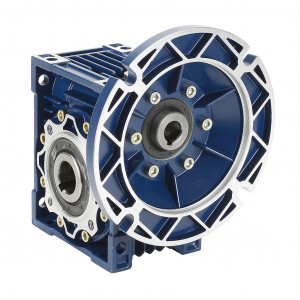

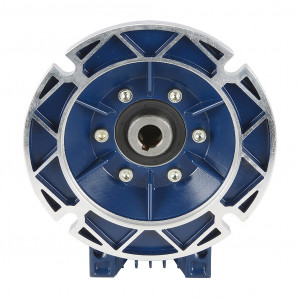

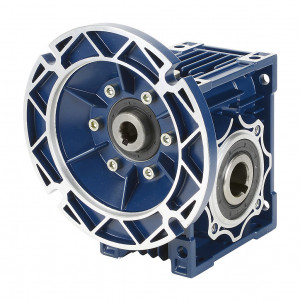

IRONHORSE MEDIUM-DUTY WORM GEARBOX, 20:1 RATIO, 56C-FACE INPUT, HOLLOW, 1IN DIAMETER OUTPUT SHAFT, NOMINAL 1HP AT 1.0 SF, 646 LB-IN MECHANICAL OUTPUT TORQUE, 50MM CENTER DISTANCE, CAST ALUMINUM HOUSING, TOP AND BOTTOM MOUNT.
Fecha Entrega:
Lunes, 29 de Diciembre de 2025
Precio (no incluye IVA):
$262.87USD
Atributos del producto
| Brand | IronHorse |
|---|---|
| Item | Gearbox |
| Application | General purpose |
| Duty Rating | Medium-duty |
| Gearbox Type | Worm |
| Gear Ratio | 20 |
| Speed Rating | 1750 RPM input / 88 RPM output |
|---|---|
| Input Configuration | 56C-Face |
| Input Power Rating | Nominal 1hp at 1.0 SF |
| Output Configuration | Hollow |
| Output Shaft Diameter | 1in |
| Mechanical Output Torque | 646 lb-in |
| Thermal Output Torque | 646 lb-in |
| Center Distance | 50mm |
| Housing Material | Cast aluminum |
| Mounting | Top and bottom |
| Finish | Anti-corrosion epoxy paint |
| Lubrication Type | Pre-filled with lifetime synthetic lube |
| Oil Seal Type | Double-lip |
