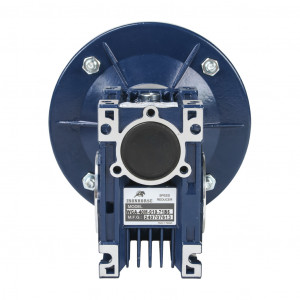

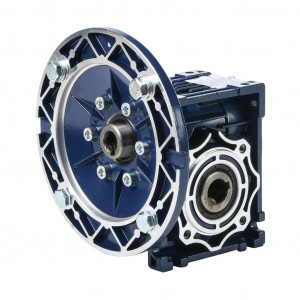

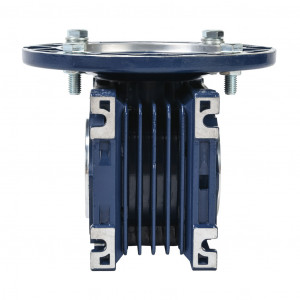

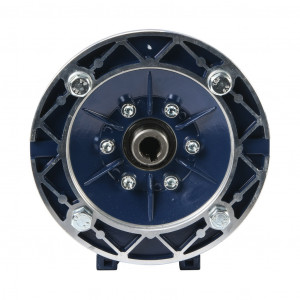

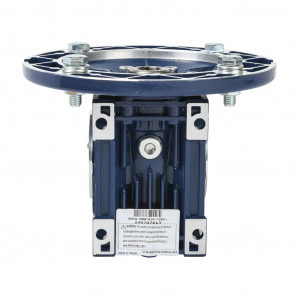

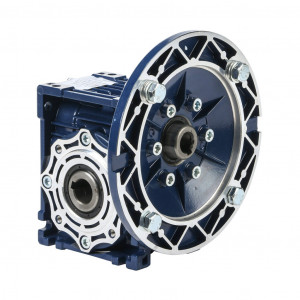

IRONHORSE MEDIUM-DUTY WORM GEARBOX, 10:1
$186.00USD
Precio no incluye IVAIRONHORSE MEDIUM-DUTY WORM GEARBOX, 10:1 RATIO, IEC 71B5 INPUT, HOLLOW, 18MM DIAMETER OUTPUT SHAFT, NOMINAL 1.21HP AT 1.0 SF, 370 LB-IN MECHANICAL OUTPUT TORQUE, 40MM CENTER DISTANCE, CAST ALUMINUM HOUSING, TOP, BOTTOM AND BACK MOUNT.
Marca: IRONHORSEModelo: WGA-40M-010-71B5
Entrega estimada:
Lunes, 21 De Julio De 2025
* Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$186.00USD
Atributos del producto
| Brand | IronHorse |
|---|---|
| Item | Gearbox |
| Application | General purpose |
| Duty Rating | Medium-duty |
| Gearbox Type | Worm |
| Gear Ratio | 10 |
| Speed Rating | 1750rpm input / 175rpm output |
|---|---|
| Input Configuration | IEC 71B5 |
| Input Power Rating | Nominal 1.21hp at 1.0 SF |
| Output Configuration | Hollow |
| Gearbox Output Shaft Diameter | 18mm |
| Mechanical Output Torque | 370 lb-in |
| Thermal Output Torque | 370 lb-in |
| Center Distance | 40mm |
| Housing Material | Cast aluminum |
| Mounting | Top and bottom |
| Finish | Powder coat |
| Lubrication Type | Pre-filled with synthetic lube |
| Oil Seal Type | Double-lip |
| Includes | Motor mounting hardware |
