[11% off $370.00 ] IRONHORSE HEAVY-DUTY WORM GEARBOX, 5:1 R
$329.3USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

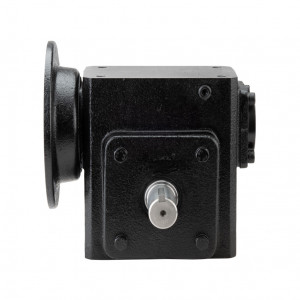

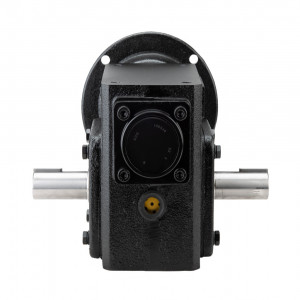

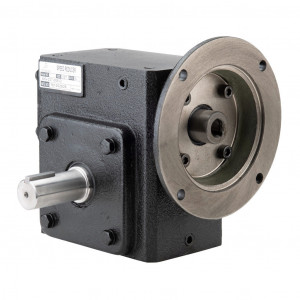

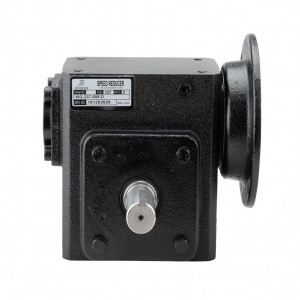

IRONHORSE HEAVY-DUTY WORM GEARBOX, 5:1 RATIO, 56C-FACE INPUT, DUAL, 1.125IN DIAMETER OUTPUT SHAFT, NOMINAL 3HP AT 1.0 SF, 766 LB-IN MECHANICAL OUTPUT TORQUE, 2-3/8IN CENTER DISTANCE, CAST IRON HOUSING, TAPPED-BASE MOUNT.
Modelo: WG-237-005-D
Jueves, 04 de Febrero de 0202
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Jueves, 12 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$329.3USD
Atributos del producto
| Brand | IronHorse |
|---|---|
| Item | Gearbox |
| Application | General purpose |
| Duty Rating | Heavy-duty |
| Gearbox Type | Worm |
| Gear Ratio | 5 |
| Speed Rating | 1750 RPM input / 350 RPM output |
|---|---|
| Input Configuration | 56C-Face |
| Input Power Rating | Nominal 3hp at 1.0 SF |
| Output Configuration | Dual |
| Output Shaft Diameter | 1.125in |
| Mechanical Output Torque | 766 lb-in |
| Thermal Output Torque | 630 lb-in |
| Center Distance | 2-3/8in |
| Housing Material | Cast iron |
| Mounting | Tapped-base |
| Finish | Anti-corrosion primer and paint |
| Lubrication Type | Pre-filled with lifetime synthetic lube |
| Oil Seal Type | Double-lip |
