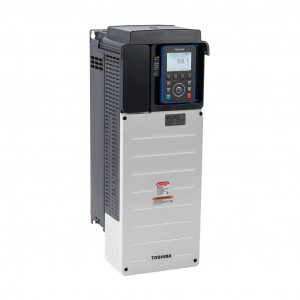

TOSHIBA AS3 SERIES AC HIGH-PERFORMANCE D
$2862.00USD
Precio no incluye IVATOSHIBA AS3 SERIES AC HIGH-PERFORMANCE DRIVE, UL TYPE 1, 460 VAC, 15HP WITH 3-PHASE INPUT, V/HZ, FOC, ENCODER OR TORQUE MODE, A3 FRAME, ETHERNET AND RS-485, ETHERNET/IP, WEBSERVER AND MODBUS, 100KA SCCR. OPTIONAL ETHERCAT, ENCODER AND I/O CARDS AVAILABLE.
Marca: TOSHIBAModelo: VFAS3-4110PC
Este producto incluye
Envío gratis
* Aplican restricciones
Jueves, 05 de Diciembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Lunes, 09 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$2862.00USD
Atributos del producto
| Brand | Toshiba |
|---|---|
| Item | Drive |
| Controller Type | High-performance |
| Series | AS3 |
| Voltage Type | AC |
| Nominal Drive Input Voltage | 460 VAC |
| Nominal Drive Output Voltage | 460 VAC |
|---|---|
| Number of Input Phases | 3 |
| Number of Output Phases | 3 |
| Horsepower By Input Phase | 15hp with 3-phase input |
| Amperage Rating | 23.5A |
| Variable Torque Amperage Rating | 31.7A |
| Control Mode | V/Hz, FOC, encoder or torque |
| Safe Torque Off (STO) | Yes |
| Temperature Rating | -15 to 50 deg C |
| Enclosure Type | UL Type 1 |
| IP Rating | IP20 |
| Mounting | Panel or wall |
| Frame Size | A3 |
| Dynamic Braking | Integrated dynamic braking unit |
| Communication Port and Connection Type(s) |
|
| Port Protocol(s) |
|
| Port Speed(s) |
|
| Input Signal | 4-20 mA, voltage, potentiometer or pulse train input |
| Output Type | PWM output |
| Reverse Capability | Built-in |
| Internally Bypassed | No |
| Carrier Frequency Range | 1-16 kHz |
| Output Frequency Range | 0.1-590 Hz |
| Number of Analog Input Channels | 3 |
| Number Of Input Channels | 3 |
| Analog Input Signal Type | Current/voltage |
| Number of Non-Isolated Analog Input Commons | 1 |
| Number of Points per Analog Input Common | 3 |
| Input Resolution | 11-bit |
| Input Current Signal Range | 0-20 mA, 4-20 mA |
| Input Voltage Signal Range | +/- 10 VDC |
| Number of Analog Output Channels | 2 |
| Number Of Output Channels | 2 |
| Analog Output Signal Type | Current/voltage |
| Number of Non-Isolated Analog Output Commons | 1 |
| Number of Points per Analog Output Common | 2 |
| Output Resolution | 10-bit |
| Output Current Signal Range | 0-20 mA and 4-20 mA |
| Output Voltage Signal Range | 0-10 VDC |
| Number of Discrete Input Points | 8 |
| Nominal Discrete Input Voltage | 24 VDC |
| Discrete Input Type | Sinking/sourcing |
| Number of Non-Isolated Discrete Input Commons | 2 |
| Number of Points per Discrete Input Common | 4 |
| Number of Discrete Output Points | 3 |
| Nominal Discrete Output Voltage | 250 VAC and 30 VDC |
| Discrete Output Type | Relay |
| Relay Configuration | (1) Form C (SPDT) relay, (2) Form A (SPST) relays |
| Number of Isolated Discrete Output Commons | 3 |
| Number of Points per Discrete Output Common | 1 |
| Load Current | 2A/point relay |
| Fuse Type | User-supplied external fuse |
| Programming Language | User sequence |
| SCCR Rating | 100kA SCCR |
| Connector Type | Screw terminals |
| For Use With | 3-phase induction and permanent magnet AC motors |
| Includes | DC reactor (built-in), EMC filter (built-in) and conduit box |

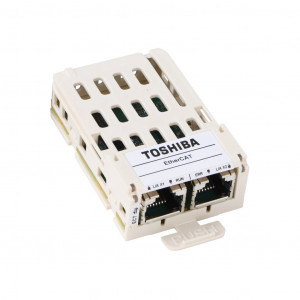

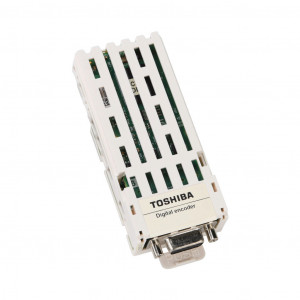

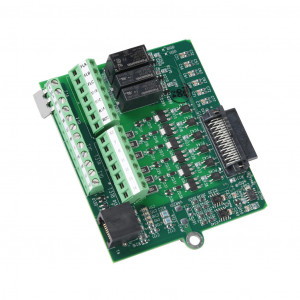

| Additional Information | Optional EtherCAT, encoder and I/O cards available |
