M.G.M. ELECTRIC MOTORS BAX IE2 HIGH EFFI
$1894.00USD
Precio no incluye IVAM.G.M. ELECTRIC MOTORS BAX IE2 HIGH EFFICIENCY AC INDUCTION MOTOR, GENERAL PURPOSE, INVERTER RATED AND BRAKE, 1/2HP, 3-PHASE, 230/460 VAC, 1800RPM, TEFC, IEC 71 (NEMA 56C FLANGE) FRAME, ALUMINUM, C-FACE MOUNT. INTEGRATED BRAKE ASSEMBLY INCLUDED.
Marca: US MOTORSModelo: UN12T2BC-HS35A
Este producto incluye
Envío gratis
* Aplican restricciones
Entrega estimada:
Precio (no incluye IVA):
$1894.00USD
Atributos del producto
| Brand | U.S. MOTORS |
|---|---|
| Item | Motor |
| Series | ACCU-Torq |
| Efficiency Group | Premium efficiency |
| Efficiency | 84 |
| Voltage Type | AC |
| Motor Type | Induction |
|---|---|
| Motor Application | High-performance inverter duty |
| Horsepower Rating | 1/2hp |
| Number of Phases | 3 |
| Voltage Rating | 230/460 VAC |
| Synchronous Speed | 1800rpm |
| Nameplate RPM | 1750rpm |
| Overload Type | None |
| Enclosure Type | TENV |
| Shaft Type | Round with square key |
| Shaft Diameter | 5/8in |
| Shaft Material | 1045 hot rolled (C-204) steel |
| Motor Frame | NEMA 56C |
| Frame Material | Rolled steel |
| Electrically Reversible | Yes |
| Insulation Class | Class F |
| IP Rating | IP44 |
| Constant Torque Rating | 5000 |
| Variable Torque Rating | 5000 |
| Service Factor | 1.0 |
| Integrated Brake | No |
| NEMA Design | Design A |
| Junction Box Orientation | F1 |
| Mounting | C-face/rigid base |
| Mounting Orientation | Horizontal |

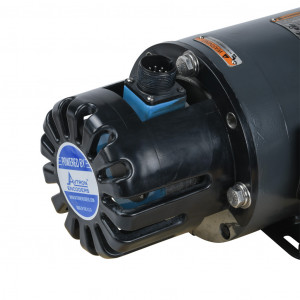

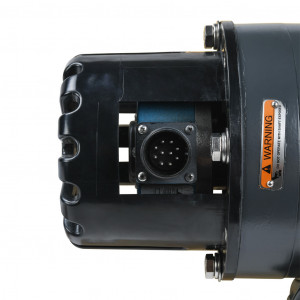

| Includes | Avtron HS35A encoder |
| Additional Information | Optional TRDA-25CBL-VWD-xx premade encoder cable available |
| Manufacturer Part Number | JD52 |
