[16% off $1374.00 ] FLOWLINE ECHOPOD REFLECTIVE ULTRASONIC L
$1154.16USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

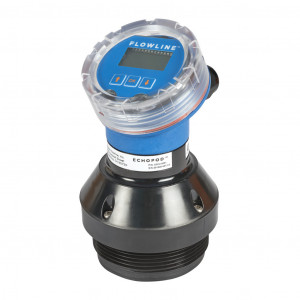

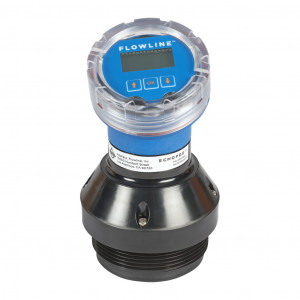

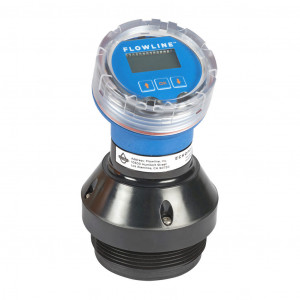

FLOWLINE ECHOPOD REFLECTIVE ULTRASONIC LIQUID LEVEL SENSOR, 39.3FT (12M) SENSING RANGE, 4-20MA, 14-28 VDC OPERATING VOLTAGE, LCD DIGITAL DISPLAY WITH PUSHBUTTONS, 3IN MALE NPT PROCESS CONNECTION.
Modelo: UG12-0001-00
Este producto incluye
Envío gratis
* Aplican restricciones
Jueves, 05 de Diciembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Lunes, 09 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$1154.16USD
Atributos del producto
| Brand | Flowline |
|---|---|
| Series | EchoPod |
| Item | Level sensor |
| Sensor Type | Reflective ultrasonic |
| Media Type | Liquid |
| Sensing Range | 39.3ft (12m) |
| Output | 4-20mA |
|---|---|
| Operating Voltage | 14-28 VDC |
| Housing Rating | NEMA 6P (IP68) |

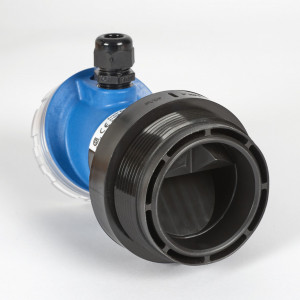

| Process Connection | 3in male NPT |
| Electrical Connection | Screwless terminals, 1/2in female NPT |

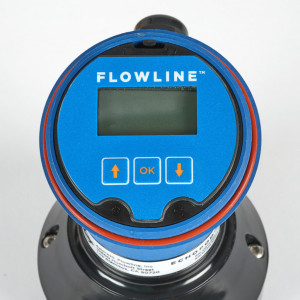

| Display Type | LCD digital display with pushbuttons |
| Includes | LM90-1001 cable gland with 1/2in male NPT thread |
| Requires | An LI99-2001 Fob USB adapter (purchased separately) and WEBCAL software (free download from the AutomationDirect Web site) are required for full sensor configuration and firmware updates. Limited configuration is available via the pushbuttons and display |
