KOYO INCREMENTAL (QUADRATURE) ROTARY ENC
$142.00USD

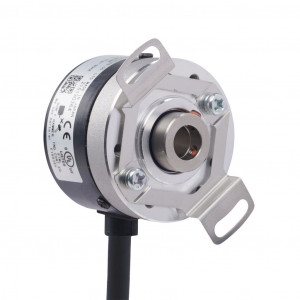

Precio no incluye IVAKOYO INCREMENTAL (QUADRATURE) ROTARY ENCODER, LIGHT DUTY, 5-26 VDC, RADIAL EXIT, NPN OPEN COLLECTOR OUTPUT, 360 PPR, 8MM HOLLOW SHAFT, 38MM DIAMETER BODY, IP50, 6.5FT/2M CABLE LENGTH, PIGTAIL.
Marca: KOYOModelo: TRD-SHR360A5D
Jueves, 05 de Diciembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Lunes, 09 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$142.00USD
Atributos del producto
| Brand | Koyo |
|---|---|
| Item | Encoder |
| Series | TRD-SR |
| Feedback Type | Incremental (quadrature) |
| Encoder Type | Rotary |
| Duty Rating | Light duty |
| Voltage Rating | 5-26 VDC |
|---|---|
| Exit Orientation | Radial |
| Encoder Output Type | NPN open collector |
| Encoder Resolution | 360 ppr |
| Shaft Type | Hollow |
| Shaft Diameter | 8mm |
| Radial Shaft Load | 30N |
| Axial Shaft Load | 20N |
| Frequency Response | 200 kHz |
| Speed Rating | 6000rpm |
| Flange Mount | No |
| Encoder Body Diameter | 38mm |
| Housing Material | Aluminum |
| IP Rating | IP50 |
| Cable Length | 6.5ft/2m |
| Cable Diameter Size | 6mm |
| Wire Size | 26 AWG |
| Connector Type | Pigtail |
