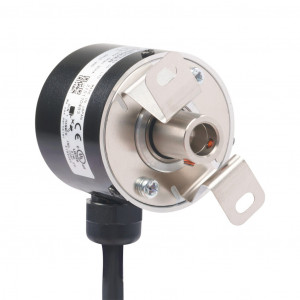

KOYO INCREMENTAL (QUADRATURE) ROTARY ENC
$192.00USD
Precio no incluye IVAKOYO INCREMENTAL (QUADRATURE) ROTARY ENCODER, LIGHT DUTY, 5 VDC, RADIAL EXIT, LINE DRIVER (DIFFERENTIAL) OUTPUT, 2500 PPR, 8MM HOLLOW SHAFT, 40MM DIAMETER BODY, IP65, 6.5FT/2M CABLE LENGTH, PIGTAIL.
Marca: KOYOModelo: TRD-SHR2500VW0D
Lunes, 09 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$192.00USD
Atributos del producto
| Brand | Koyo |
|---|---|
| Item | Encoder |
| Series | TRD-SR |
| Feedback Type | Incremental (quadrature) |
| Encoder Type | Rotary |
| Duty Rating | Light duty |
| Voltage Rating | 5 VDC |
|---|---|
| Exit Orientation | Radial |
| Encoder Output Type | Line driver (differential) |
| Encoder Resolution | 2500 ppr |
| Shaft Type | Hollow |
| Shaft Diameter | 8mm |
| Radial Shaft Load | 30N |
| Axial Shaft Load | 20N |
| Frequency Response | 200 kHz |
| Speed Rating | 6000rpm |
| Flange Mount | No |
| Encoder Body Diameter | 40mm |
| Housing Material | Aluminum |
| IP Rating | IP65 |
| Cable Length | 6.5ft/2m |
| Cable Diameter Size | 6mm |
| Wire Size | 26 AWG |
| Connector Type | Pigtail |
