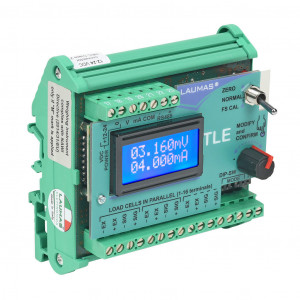

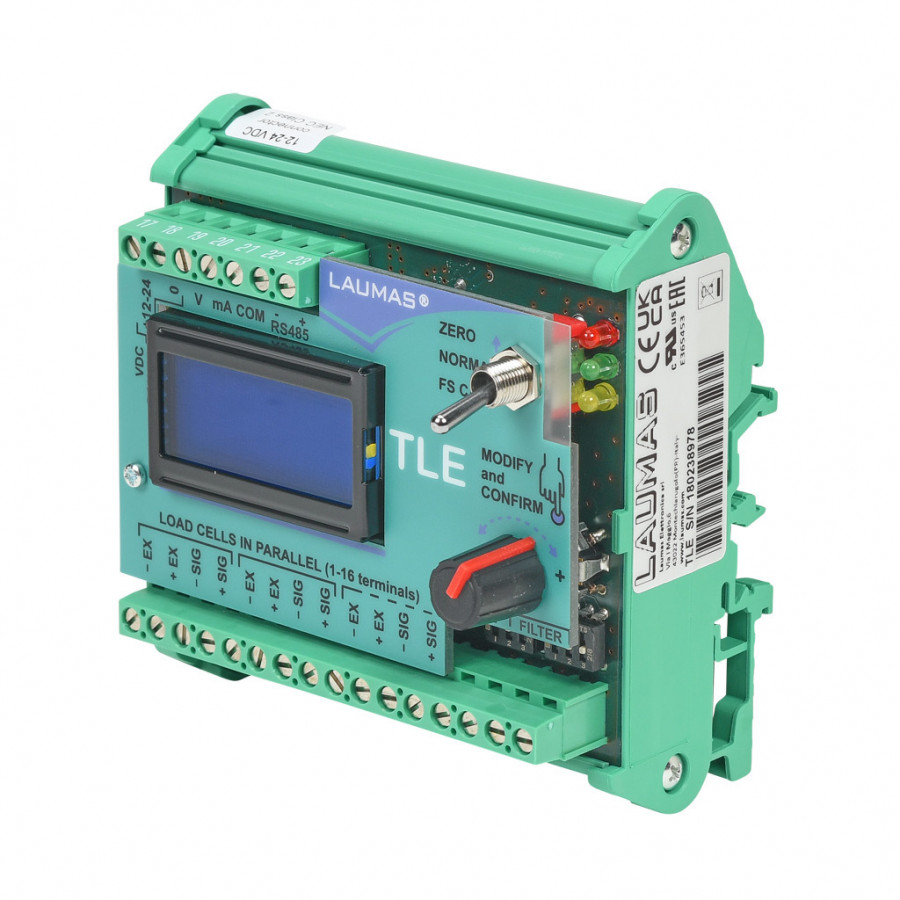

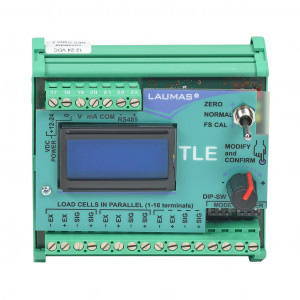

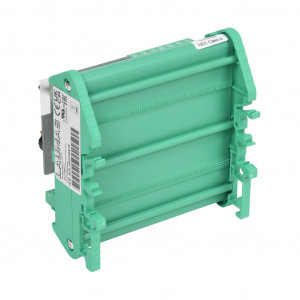

LAUMAS ANALOG LOAD CELL TRANSMITTER, (4)
$257.00USD
Precio no incluye IVALAUMAS ANALOG LOAD CELL TRANSMITTER, (4) LOAD CELL INPUT(S), +/- 39 MV, ANALOG OUTPUT, MODBUS RTU, 12-24 VDC OPERATING VOLTAGE. FOR USE WITH 4- OR 6-WIRE LOAD CELLS. UP TO (8) LOAD CELLS CAN BE CONNECTED.
Marca: LAUMASModelo: TLE
Entrega estimada:
Viernes, 05 de Septiembre de 2025
Precio (no incluye IVA):
$257.00USD
Atributos del producto
| Brand | Laumas |
|---|---|
| Item | Load cell transmitter |
| I/O Module Type | Analog |
| Number of Load Cell Inputs | 4 |
| Input Load Cell Signal Range | +/- 39 mV |
| Input Resolution | 24-bit |
| Input Excitation Voltage | 5 VDC |
|---|---|
| Number of Analog Output Channels | 1 |
| Analog Output Signal Type | Current/voltage |
| Number of Non-Isolated Analog Output Commons | 1 |
| Output Resolution | 16-bit |
| Output Current Signal Range | 0-20 mA and 4-20 mA |
| Output Voltage Signal Range | 0-5 VDC, 0-10 VDC, +/- 5 VDC and +/- 10 VDC |
| Communication Port and Connection Type(s) |
|
| Port Protocol(s) |
|
| Port Speed(s) |
|
| Mounting | 35mm DIN rail |
| Operating Voltage | 12-24 VDC |
| Display Type | Two-line, 8-digit, LCD |
| For Use With | 4- or 6-wire load cells |
| Additional Information | Up to (8) load cells can be connected |
