LAUMAS DISCRETE LOAD CELL TRANSMITTER, (
$672.00USD

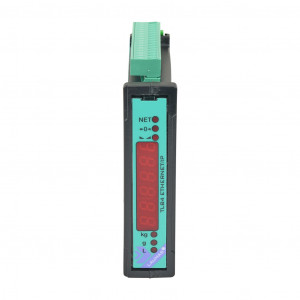

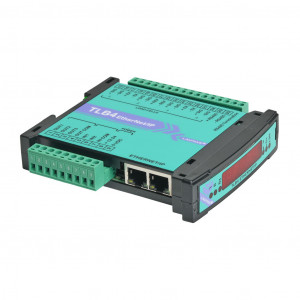

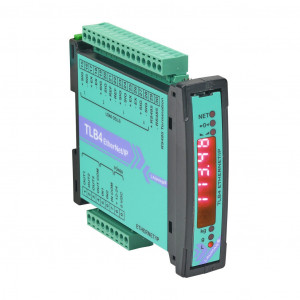

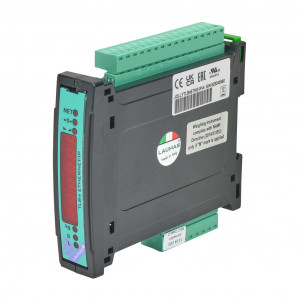

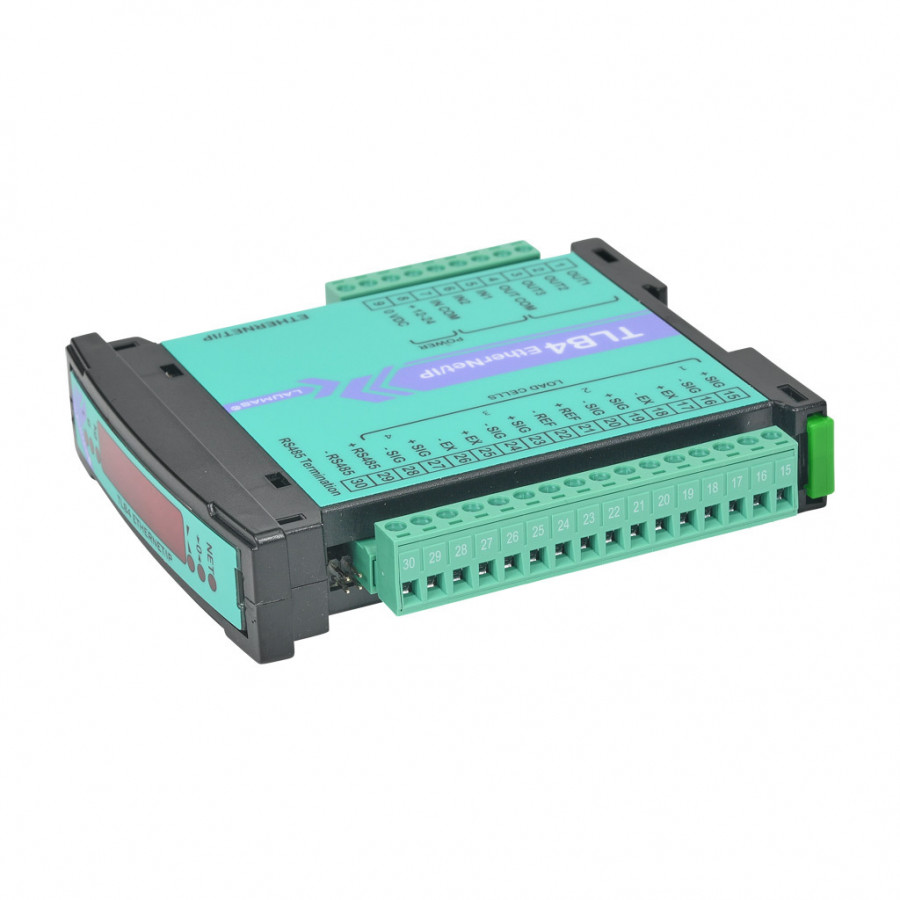

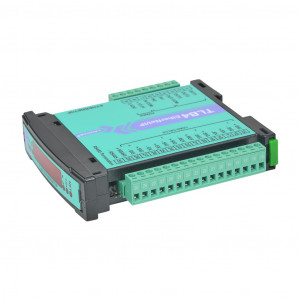

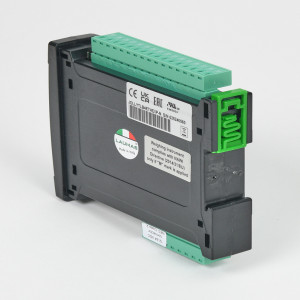

Precio no incluye IVALAUMAS DISCRETE LOAD CELL TRANSMITTER, (4) LOAD CELL INPUT(S), +/- 39 MV, RELAY OUTPUT, ETHERNET/IP AND MODBUS RTU, 12-24 VDC OPERATING VOLTAGE. FOR USE WITH 4- OR 6-WIRE LOAD CELLS. UP TO (16) LOAD CELLS CAN BE CONNECTED.
Marca: LAUMASModelo: TLB4ETHEIP
Documentos:
Este producto incluye
Envío gratis
* Aplican restricciones
Entrega estimada:
Jueves, 24 De Julio De 2025
* Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$672.00USD
Atributos del producto
| Brand | Laumas |
|---|---|
| Item | Load cell transmitter |
| I/O Module Type | Discrete |
| Number of Load Cell Inputs | 4 |
| Input Load Cell Signal Range | +/- 39 mV |
| Input Resolution | 24-bit |
| Input Excitation Voltage | 5 VDC |
|---|---|
| Number of Discrete Input Points | 2 |
| Nominal Input Voltage | 5-24 VDC |
| Discrete Input Type | PNP |
| Number of Non-Isolated Discrete Input Commons | 1 |
| Number of Points per Discrete Input Common | 2 |
| Number of Discrete Output Points | 3 |
| Nominal Output Voltage | 115 VAC |
| Discrete Output Type | Relay |
| Relay Configuration | (3) Form A (SPST) relays |
| Number of Non-Isolated Discrete Output Commons | 1 |
| Number of Points per Discrete Output Common | 3 |
| Load Current | 150 mA/point |
| Communication Port and Connection Type(s) |
|
| Port Protocol(s) |
|
| Port Speed(s) |
|
| Mounting | 35mm DIN rail or panel |
| Operating Voltage | 12-24 VDC |
| Display Type | 8mm 6-digit red LED |
| For Use With | 4- or 6-wire load cells |
| Includes | Removable terminal blocks |
| Additional Information | Up to (16) load cells can be connected |
