[5% off $1006.00 ] SURESERVO2 HIGH INERTIA AC BRUSHLESS SER
$955.7USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

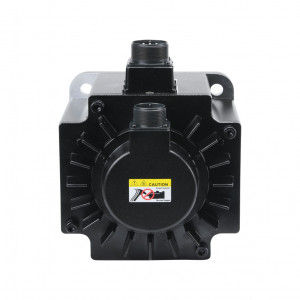

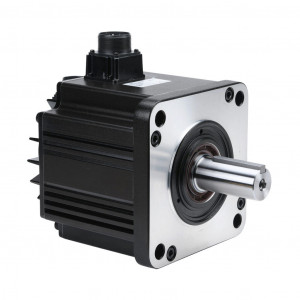

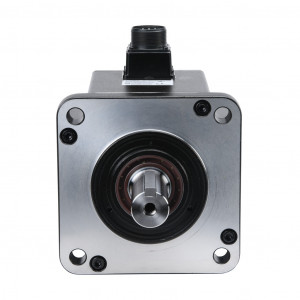

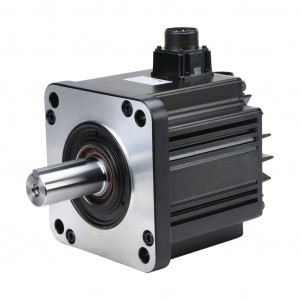

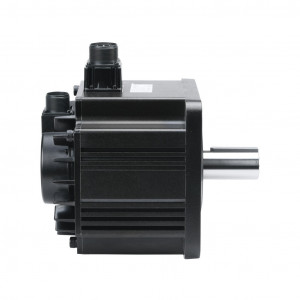

SURESERVO2 HIGH INERTIA AC BRUSHLESS SERVO MOTOR, 3 KW, 3-PHASE INPUT, 24-BIT (16777216 PPR) ENCODER. FOR USE WITH SURESERVO2 SV2A-4300 3 KW DRIVE.
Modelo: SV2H-430N
Este producto incluye
Envío gratis
* Aplican restricciones
Entrega estimada:
Precio (no incluye IVA):
$955.7USD
Atributos del producto
| Brand | SureServo2 |
|---|---|
| Item | Servo motor |
| Performance Level | High inertia |
| Voltage Type | AC |
| Motor Type | Brushless |
| Power Rating | 3 kW |
| Number of Input Phases | 3 |
|---|---|
| Rated Speed | 1500rpm |
| Maximum Speed | 3000rpm |
| Amperage Rating | 12.2A |
| Holding Torque Rating | 169 lb-in |
| Encoder Resolution | 24-bit (16777216 ppr) |
| Integrated Brake | No |
| Motor Frame | 180mm |
| IP Rating | IP65 |
| Shaft Type | Single |

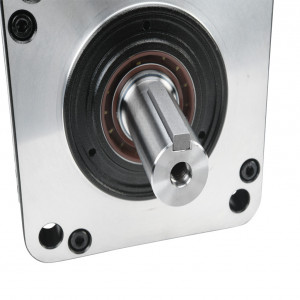

| Shaft Diameter | 35mm |
| Steps per Revolution | Up to 24-bit (16777216 ppr) |
| For Use With | SureServo2 SV2A-4300 3 kW drive |

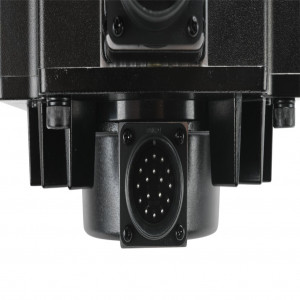

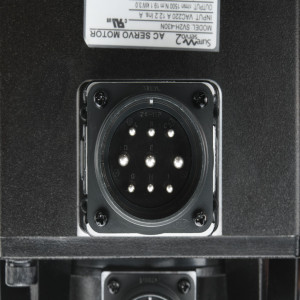

| Includes | (2) integrated MS connectors for encoder and power cables |
| Requires | SureServo2 SV2C-Pxxx power cable and SV2C-Exxx encoder cable |
