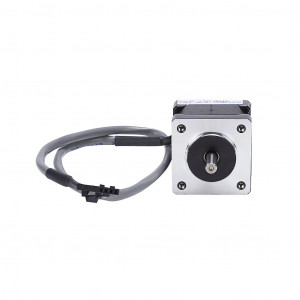

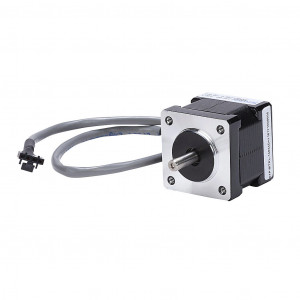

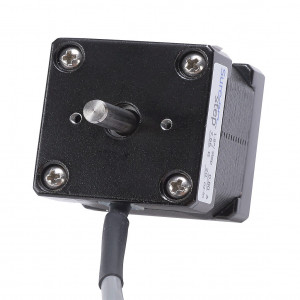

[3% off $51.00 ] SURESTEP STEPPER MOTOR, NEMA 14 FRAME, I
$49.47USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA
SURESTEP STEPPER MOTOR, NEMA 14 FRAME, IP40, DUAL SHAFT, ENCODER READY, 0.8A, 20 OZ-IN HOLDING TORQUE, 1.8-DEGREE STEP ANGLE, 200 STEPS PER REVOLUTION, BIPOLAR. REQUIRES STP-EXTL-XXX CABLE.
Fecha Entrega:
Precio (no incluye IVA):
$49.47USD
Atributos del producto
| Brand | SureStep |
|---|---|
| Item | Stepper motor |
| Voltage Type | DC |
| Motor Type | Brushless |
| Number of Output Phases | 2 |
| Encoder Position | Encoder ready |
| Encoder Resolution | Encoder ready |
|---|---|
| Integrated Brake | No |
| Motor Frame | NEMA 14 |
| IP Rating | IP40 |
| Shaft Type | Dual |
| Amperage Rating | 0.8A |
| Holding Torque Rating | 20 oz-in |
| Step Angle | 1.8-degree |
| Steps per Revolution | 200 |
| Winding Type | Bipolar |
| Cable Length | 1ft |
| Connector Type | 4-position male |
| Requires | STP-EXTL-xxx cable |
