[3% off $280.00 ] SURESTEP STEPPER MOTOR, NEMA 34 FRAME, I
$271.6USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA
SURESTEP STEPPER MOTOR, NEMA 34 FRAME, IP40, SINGLE SHAFT, 6.3A, 800 OZ-IN HOLDING TORQUE, 1.8-DEGREE STEP ANGLE, 200 STEPS PER REVOLUTION, BIPOLAR. REQUIRES STP-EXTH-XXX CABLE.
Fecha Entrega:
Precio (no incluye IVA):
$271.6USD
Atributos del producto
| Brand | SureStep |
|---|---|
| Item | Stepper motor |
| Voltage Type | DC |
| Motor Type | Brushless |
| Number of Output Phases | 2 |
| Integrated Brake | No |
| Motor Frame | NEMA 34 |
|---|---|
| IP Rating | IP40 |
| Shaft Type | Single |
| Amperage Rating | 6.3A |
| Holding Torque Rating | 800 oz-in |
| Step Angle | 1.8-degree |
| Steps per Revolution | 200 |
| Winding Type | Bipolar |
| Cable Length | 1ft |
| Connector Type | 4-position male |
| DataSheet | https |
¿Porqué SDI Industrial Store?
Compra rápido, seguro y sencillo
La mejor calidad de servicio
Garantía directa con nosotros
Envíos Gratis en compras mayores a $ 650.00
Productos recomendados
-
SUREGEAR PRECISION PLANETARY GEARBOX, 5:
SUREGEAR PRECISION PLANETARY GEARBOX, 5:1 RATIO, INLINE, 0.5IN DIAMETER OUTPUT SHAFT, NOMINAL OUTPUT TORQUE 26 N-M (230 LB-IN), 1-STAGE, NEMA 34 FRAME. FOR USE WITH SURESTEP NEMA 34 MOTORS.
SUREGEAR PRECISION PLANETARY GEARBOX, 5:1 RATIO, INLINE, 0.5IN DIAMETER OUTPUT SHAFT, NOMINAL OUTPUT TORQUE 26 N-M (230 LB-IN), 1-STAGE, NEMA 34 FRAME. FOR USE WITH SURESTEP NEMA 34 MOTORS.Precio no incluye IVAPGCN34-0550
$614.00 USD
-
SUREGEAR PRECISION PLANETARY GEARBOX, 10
SUREGEAR PRECISION PLANETARY GEARBOX, 100:1 RATIO, INLINE, 0.5IN DIAMETER OUTPUT SHAFT, NOMINAL OUTPUT TORQUE 16 N-M (142 LB-IN), 2-STAGE, NEMA 34 FRAME. FOR USE WITH SURESTEP NEMA 34 MOTORS.
SUREGEAR PRECISION PLANETARY GEARBOX, 100:1 RATIO, INLINE, 0.5IN DIAMETER OUTPUT SHAFT, NOMINAL OUTPUT TORQUE 16 N-M (142 LB-IN), 2-STAGE, NEMA 34 FRAME. FOR USE WITH SURESTEP NEMA 34 MOTORS.Precio no incluye IVAPGCN34-10050
$832.00 USD
-
SUREGEAR PRECISION PLANETARY GEARBOX, 10
SUREGEAR PRECISION PLANETARY GEARBOX, 10:1 RATIO, INLINE, 0.5IN DIAMETER OUTPUT SHAFT, NOMINAL OUTPUT TORQUE 16 N-M (142 LB-IN), 1-STAGE, NEMA 34 FRAME. FOR USE WITH SURESTEP NEMA 34 MOTORS.
SUREGEAR PRECISION PLANETARY GEARBOX, 10:1 RATIO, INLINE, 0.5IN DIAMETER OUTPUT SHAFT, NOMINAL OUTPUT TORQUE 16 N-M (142 LB-IN), 1-STAGE, NEMA 34 FRAME. FOR USE WITH SURESTEP NEMA 34 MOTORS.Precio no incluye IVAPGCN34-1050
$614.00 USD
-
SUREGEAR PRECISION PLANETARY GEARBOX, 25
SUREGEAR PRECISION PLANETARY GEARBOX, 25:1 RATIO, INLINE, 0.5IN DIAMETER OUTPUT SHAFT, NOMINAL OUTPUT TORQUE 42 N-M (372 LB-IN), 2-STAGE, NEMA 34 FRAME. FOR USE WITH SURESTEP NEMA 34 MOTORS.
SUREGEAR PRECISION PLANETARY GEARBOX, 25:1 RATIO, INLINE, 0.5IN DIAMETER OUTPUT SHAFT, NOMINAL OUTPUT TORQUE 42 N-M (372 LB-IN), 2-STAGE, NEMA 34 FRAME. FOR USE WITH SURESTEP NEMA 34 MOTORS.Precio no incluye IVAPGCN34-2550
$832.00 USD
-
SUREGEAR PRECISION PLANETARY GEARBOX, 50
SUREGEAR PRECISION PLANETARY GEARBOX, 50:1 RATIO, INLINE, 0.5IN DIAMETER OUTPUT SHAFT, NOMINAL OUTPUT TORQUE 42 N-M (372 LB-IN), 2-STAGE, NEMA 34 FRAME. FOR USE WITH SURESTEP NEMA 34 MOTORS.
SUREGEAR PRECISION PLANETARY GEARBOX, 50:1 RATIO, INLINE, 0.5IN DIAMETER OUTPUT SHAFT, NOMINAL OUTPUT TORQUE 42 N-M (372 LB-IN), 2-STAGE, NEMA 34 FRAME. FOR USE WITH SURESTEP NEMA 34 MOTORS.Precio no incluye IVAPGCN34-5050
$832.00 USD
-
SURESTEP DC MICROSTEPPING STEPPER DRIVE,
SURESTEP DC MICROSTEPPING STEPPER DRIVE, 7.5A PER PHASE, 2-PHASE OUTPUT, 24-75 VDC, BIPOLAR, VELOCITY AND POSITION MODE, 200 TO 20000 STEPS PER REVOLUTION.
SURESTEP DC MICROSTEPPING STEPPER DRIVE, 7.5A PER PHASE, 2-PHASE OUTPUT, 24-75 VDC, BIPOLAR, VELOCITY AND POSITION MODE, 200 TO 20000 STEPS PER REVOLUTION.Precio no incluye IVASTP-DRV-6575
$141.00 USD
-
SURESTEP DC ADVANCED MICROSTEPPING STEPP
SURESTEP DC ADVANCED MICROSTEPPING STEPPER DRIVE, 10A PER PHASE, 2-PHASE OUTPUT, 24-80 VDC, BIPOLAR, VELOCITY AND POSITION MODE, 200 TO 51200 STEPS PER REVOLUTION, (1) RS-232 (RJ11) PORT(S).
SURESTEP DC ADVANCED MICROSTEPPING STEPPER DRIVE, 10A PER PHASE, 2-PHASE OUTPUT, 24-80 VDC, BIPOLAR, VELOCITY AND POSITION MODE, 200 TO 51200 STEPS PER REVOLUTION, (1) RS-232 (RJ11) PORT(S).Precio no incluye IVASTP-DRV-80100
$433.00 USD
-

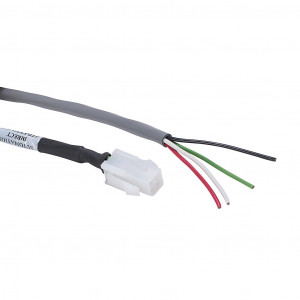

SURESTEP EXTENSION CABLE, 4-PIN CONNECTO
SURESTEP EXTENSION CABLE, 4-PIN CONNECTOR TO PIGTAIL, 6FT CABLE LENGTH. FOR USE WITH SURESTEP MTRH SERIES STEPPER MOTORS.
SURESTEP EXTENSION CABLE, 4-PIN CONNECTOR TO PIGTAIL, 6FT CABLE LENGTH. FOR USE WITH SURESTEP MTRH SERIES STEPPER MOTORS.Precio no incluye IVASTP-EXTH-006
$36.00 USD
-

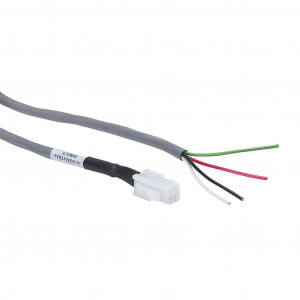

SURESTEP EXTENSION CABLE, 4-PIN CONNECTO
