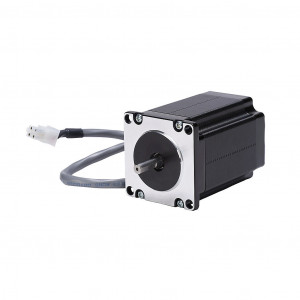

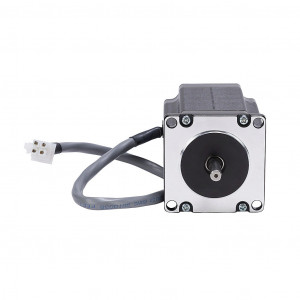

[3% off $194.00 ] SURESTEP STEPPER MOTOR, NEMA 23 FRAME, I
$188.18USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

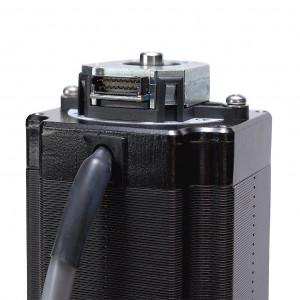

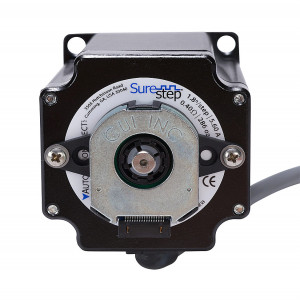

SURESTEP STEPPER MOTOR, NEMA 23 FRAME, IP40, DUAL SHAFT, EXTERNAL (FIELD-WIREABLE) ENCODER, 5.6A, 286 OZ-IN HOLDING TORQUE, 1.8-DEGREE STEP ANGLE, 200 STEPS PER REVOLUTION, BIPOLAR. REQUIRES STP-EXTH-XXX AND STP-CBL-EBXXX CABLES.
Fecha Entrega:
Precio (no incluye IVA):
$188.18USD
Atributos del producto
| Brand | SureStep |
|---|---|
| Item | Stepper motor |
| Voltage Type | DC |
| Motor Type | Brushless |
| Number of Output Phases | 2 |
| Encoder Position | External (field-wireable) |
| Encoder Type | Incremental (quadrature) |
|---|---|
| Encoder Resolution | Up to 4096 ppr |
| Configuration | Software |
| Encoder Output Type | Line driver (differential) |
| Integrated Brake | No |
| Motor Frame | NEMA 23 |
| IP Rating | IP40 |
| Shaft Type | Dual |
| Amperage Rating | 5.6A |

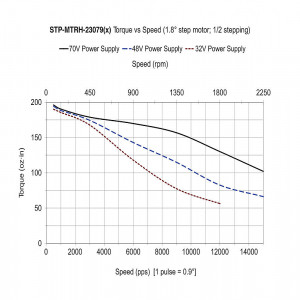

| Holding Torque Rating | 286 oz-in |
| Step Angle | 1.8-degree |
| Steps per Revolution | 200 |
| Winding Type | Bipolar |
| Cable Length | 1ft |
| Connector Type | 4-position male |
| Requires | STP-EXTH-xxx and STP-CBL-EBxxx cables |
| Additional Information | Optional programming cable STP-USBENC-CBL-1 required to change encoder from default 400ppr |
