[18% off $561.00 ] SURESTEP DC INTEGRATED STEPPER MOTOR/DRI
$460.02USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

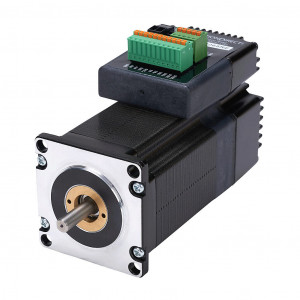

SURESTEP DC INTEGRATED STEPPER MOTOR/DRIVE, ADVANCED MICROSTEPPING, NEMA 23 FRAME, IP20, 5A, 12-70 VDC, BIPOLAR, 210 OZ-IN HOLDING TORQUE, 1.8-DEGREE STEP ANGLE, 200 TO 25000 STEPS PER REVOLUTION, INTERNAL (INACCESSIBLE) ENCODER, (1) RS-485 (4-PIN) PORT(S).
Modelo: STP-MTRD-23065RE
Documentos:
Miércoles, 01 de Enero de 2025
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Lunes, 09 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$460.02USD
Atributos del producto
| Brand | SureStep |
|---|---|
| Item | Motor/drive |
| Motor Type | Integrated stepper |
| Voltage Type | DC |
| Controller Type | Advanced microstepping |
| Amperage Rating | 5A |
| Number of Output Phases | 2 |
|---|---|
| Voltage Rating | 12-70 VDC |
| Winding Type Control | Bipolar |
| Output Type | MOSFET, dual H-bridge and 4-quadrant output |
| Current Control | 4-state PWM at 20 kHz |
| Step Angle | 1.8-degree |
| Steps per Revolution | 200 to 25000 |
| Encoder Position | Internal (inaccessible) |
| Encoder Type | Incremental (quadrature) |
| Encoder Resolution | 4000 ppr |
| Communication Port and Connection Type(s) |
|
| Port Protocol(s) |
|
| Port Speed(s) |
|
| Temperature Rating | 0 to 40 deg C |
| Enclosure Type | Enclosed |
| Integrated Brake | No |
| Motor Frame | NEMA 23 |
| IP Rating | IP20 |
| Shaft Type | Single |
| Holding Torque Rating | 210 oz-in |
| Control Mode | Velocity and position |
| Command Signal(s) |
|
| Number of Discrete Input Points | 3 |
| Nominal Input Voltage | 5-24 VDC |
| Discrete Input Type | Sinking/sourcing |
| Number of Discrete Output Points | 1 |
| Nominal Output Voltage | 5-24 VDC |
| Discrete Output Type | Sinking/sourcing |
| Number of Analog Input Points | 1 |
| Analog Input Signal Type | Voltage |
| Input Voltage Signal Range | 0-5 VDC |
| Tuning Mode | Pre-tuned |
| Idle Current Reduction | Yes |
| Drive Features | Self-test, anti-resonance (electronic damping), torque ripple smoothing and command signal filtering |
| Protection Type(s) |
|
| Configuration | Software |
| Software Required | SM-PRO configuration software |
| Requires | STP-485DB9-CBL-2 communication cable and STP-USB485-4W PC adapter |
| Additional Information | Internal encoder not accessible |
