[18% off $358.00 ] SURESTEP DC INTEGRATED STEPPER MOTOR/DRI
$293.56USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

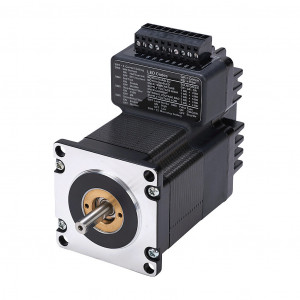

SURESTEP DC INTEGRATED STEPPER MOTOR/DRIVE, MICROSTEPPING, NEMA 23 FRAME, IP20, 5A, 12-48 VDC, BIPOLAR, 125 OZ-IN HOLDING TORQUE, 1.8-DEGREE STEP ANGLE, 200 TO 25000 STEPS PER REVOLUTION, EXTERNAL (FIELD-WIREABLE) ENCODER.
Modelo: STP-MTRD-23042E
Jueves, 05 de Diciembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Lunes, 09 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$293.56USD
Atributos del producto
| Brand | SureStep |
|---|---|
| Item | Motor/drive |
| Motor Type | Integrated stepper |
| Voltage Type | DC |
| Controller Type | Microstepping |
| Amperage Rating | 5A |
| Number of Output Phases | 2 |
|---|---|
| Voltage Rating | 12-48 VDC |
| Winding Type Control | Bipolar |
| Output Type | MOSFET, dual H-bridge and 4-quadrant output |
| Current Control | 4-state PWM at 16 kHz |
| Step Angle | 1.8-degree |
| Steps per Revolution | 200 to 25000 |
| Encoder Position | External (field-wireable) |
| Encoder Type | Incremental (quadrature) |
| Encoder Resolution | 1000 ppr |
| Encoder Output Type | Line driver (differential) |
| Temperature Rating | 0 to 40 deg C |
| Enclosure Type | Enclosed |
| Integrated Brake | No |
| Motor Frame | NEMA 23 |
| IP Rating | IP20 |
| Shaft Type | Single |
| Holding Torque Rating | 125 oz-in |
| Control Mode | Position |
| Command Signal(s) |
|
| Number of Discrete Input Points | 3 |
| Nominal Input Voltage | 5-24 VDC |
| Discrete Input Type | Sinking/sourcing |
| Number of Discrete Output Points | 1 |
| Nominal Output Voltage | 5-24 VDC |
| Discrete Output Type | Sinking/sourcing |
| Tuning Mode | Pre-tuned |
| Idle Current Reduction | Yes |
| Drive Features | Self-test, anti-resonance (electronic damping), torque ripple smoothing and command signal filtering |
| Protection Type(s) |
|
| Configuration | Dipswitch |
| Includes | (1) 3ft encoder cable, (1) 1ft control cable and (1) STP-MTRA-ENC1 modular encoder |
