[3% off $354.00 ] SURESTEP STEPPER MOTOR, NEMA 42 FRAME, I
$343.38USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

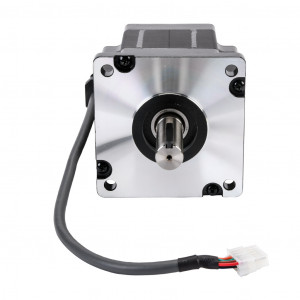

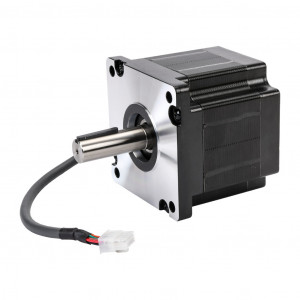

SURESTEP STEPPER MOTOR, NEMA 42 FRAME, IP40, SINGLE SHAFT, 6A, 1742 OZ-IN HOLDING TORQUE, 1.8-DEGREE STEP ANGLE, 200 STEPS PER REVOLUTION, BIPOLAR. REQUIRES SURESTEP STP-EXT42H-XXX CABLE.
Fecha Entrega:
Precio (no incluye IVA):
$343.38USD
Atributos del producto
| Brand | SureStep |
|---|---|
| Item | Stepper motor |
| Voltage Type | DC |
| Motor Type | Brushless |
| Number of Output Phases | 2 |
| Integrated Brake | No |
| Motor Frame | NEMA 42 |
|---|---|
| IP Rating | IP40 |
| Shaft Type | Single |
| Amperage Rating | 6A |
| Holding Torque Rating | 1742 oz-in |
| Step Angle | 1.8-degree |
| Steps per Revolution | 200 |
| Winding Type | Bipolar |

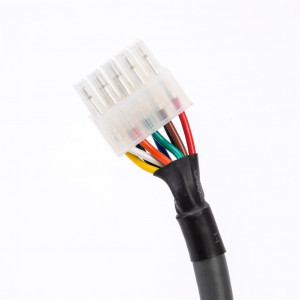

| Connector Type | 10-pin male |
| Requires | SureStep STP-EXT42H-xxx cable |
| Additional Information | Motors can be wired in series or parallel configuration |
