[3% off $328.00 ] SURESTEP STEPPER MOTOR, NEMA 34 FRAME, I
$318.16USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

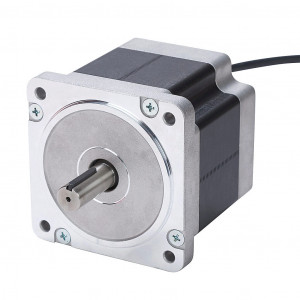

SURESTEP STEPPER MOTOR, NEMA 34 FRAME, IP40, DUAL SHAFT, ENCODER READY, 2.15A, 821 OZ-IN HOLDING TORQUE, 1.8-DEGREE STEP ANGLE, 200 STEPS PER REVOLUTION, BIPOLAR.
Fecha Entrega:
Lunes, 22 De Diciembre De 2025
* IMPORTANTE: Fecha final de entrega e Inventario sujeto a disponibilidad mundial, necesario validar a través del chat.
Precio (no incluye IVA):
$318.16USD
Atributos del producto
| Brand | SureStep |
|---|---|
| Item | Stepper motor |
| Voltage Type | DC |
| Motor Type | Brushless |
| Number of Output Phases | 2 |
| Encoder Position | Encoder ready |
| Encoder Resolution | Encoder ready |
|---|---|
| Integrated Brake | No |
| Motor Frame | NEMA 34 |
| IP Rating | IP40 |
| Shaft Type | Dual |
| Amperage Rating | 2.15A |
| Holding Torque Rating | 821 oz-in |
| Step Angle | 1.8-degree |
| Steps per Revolution | 200 |
| Winding Type | Bipolar |

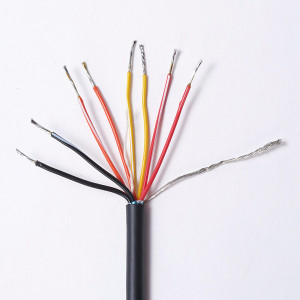

| Cable Length | 10ft |
| Connector Type | Pigtail |
| Additional Information | Optimized for AC-input stepper drives |
