STM82A-HT2

METROL LIMIT SWITCH, HIGH TEMPERATURE, S

$277.00USD

Precio no incluye IVA

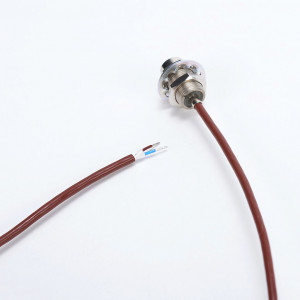

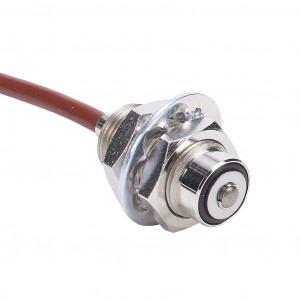

METROL LIMIT SWITCH, HIGH TEMPERATURE, STOPPER, 10MM DIAMETER, THREADED, 0.75MM PITCH, 19.5MM LENGTH, 2.5MM RADIUS HEAD, STAINLESS STEEL, 3MM PLUNGER WITH BOOT, 1N CONTACT FORCE, DRY CONTACT(S), N.O., 6.5FT/2M CABLE LENGTH, PIGTAIL.

Modelo: STM82A-HT2

Documentos:

STM82A-HT2 2D Drawing

Product Line Brochure

Category 2D Drawings

Product Cut Sheet

Limit Switch Insert

STM82A-HT2 STP 3D Model

Technical Specifications

ENVIO GRATIS en compras mayores a $650.00 USD.

1 AÑO de Garantía SDI

Fecha Entrega:

Debug Url: "https://proyectos.sdindustrial.com.mx/apps/tienda/StockAutomation/fechaentrega.php?vcModelo=STM82A-HT2"

Debug Cantidad: "13"

Debug Mensaje: "Disponible"

Debug FechaEmbarque: "Lunes, 15 de Junio de 2026"

Debug Fabricante: "AutomationDirect"

Debug idFabricante: "297"

Debug idProveedor: "106"

Lunes, 15 de Junio de 2026

											*** Condición ejecutada: Entró en Disponible + AutomationDirect ***
											*** ocultaCompra:  ***

Unidades Disponibles: 13

Precio (no incluye IVA):

$277.00USD

Cantidad:

Atributos Arriba

Atributos del producto

Brand	Metrol
Item	Limit switch
Application	High temperature
Switch Type	Stopper
Diameter	10mm
Barrel Type	Threaded

Length	19.5mm
Head Type	2.5mm radius
Actuator Type	3mm plunger with boot
Contact Force	1N
Contact Type	Dry
Switching Output	N.O.
Cable Length	6.5ft/2m
Connection	Pigtail
Conductor Size	24 AWG
Stroke	0.3mm
Repeatability	0.01mm
Impact Resistance	0.2 joules
Withstand Load	3000N
Thread Pitch	0.75mm
Material	Stainless steel
IP Rating	IP67
Includes	Mounting hardware
