[3% off $924.00 ] SAGINAW HMI ENCLOSURE, NEMA 3R/4/4X/12/1



$896.28USD

Precio no incluye IVA

DESCUENTO EXCLUSIVO TIENDA EN LINEA
SAGINAW HMI ENCLOSURE, NEMA 3R/4/4X/12/13, 12 X 16 X 10IN (HXWXD), SUSPENSION OR PEDESTAL MOUNT, DUAL ACCESS, 304 STAINLESS STEEL, #4 BRUSH FINISH, SCREW COVER FRONT, SINGLE DOOR REAR, 1/4-TURN SEMI-FLUSH LATCH.

Modelo: SCE-12HMI1610SSLP

---

Compartir

Documentos:

SCE-12HMI1610SSLP 2D Drawing

Product Line Brochure

Installation Instructions

Product Cut Sheet

SCE-12HMI1610SSLP STP 3D Model

Technical Specifications

Este producto incluye

Envío gratis

* Aplican restricciones

1 AÑO de Garantía SDI

Fecha Entrega:

Debug Url: "https://proyectos.sdindustrial.com.mx/apps/tienda/StockAutomation/fechaentrega.php?vcModelo=SCE-12HMI1610SSLP"

Debug Cantidad: "0"

Debug Mensaje: "Sin disponibilidad por el momento."

Debug FechaEmbarque: "Lunes, 10 de Noviembre de 2025"

Debug Fabricante: "AutomationDirect"

Debug idFabricante: "334"

Debug idProveedor: "106"

Sin disponibilidad por el momento.

											*** Condición ejecutada: Entró en Sin disponibilidad ***
											*** ocultaCompra: display:none; ***


Precio (no incluye IVA):

$896.28USD

Cantidad:

Agregar a carrito Comprar ahora Agregar a Favoritos

Atributos Arriba

Atributos del producto

Brand	Saginaw
Item	HMI Enclosure
Subpanel	Purchase subpanel separately
Slope Top	No
3-Piece Assembly	No
Vented	No

---

Ver más

---

NEMA Rating	3R/4/4X/12/13
IP Rating	IP66
Nominal Enclosure Dimensions	12 x 16 x 10in (HxWxD)
Enclosure Height	12.27in
Enclosure Width	16.27in
Enclosure Depth	11.25in
Mounting	Suspension or pedestal
Dual Access	Yes
Knockouts	No
Material	304 stainless steel
Finish	#4 brush
Cover Type	Screw cover front, single door rear
Hinge Type	Concealed hinges
Number of Hinges Per Door	2
Latch Type	1/4-turn semi-flush latch
Number Of Latches	1
Padlockable	No
Keylocking	No
Additional Information	Max front cut-out area 9.5 x 13.5in

¿Porqué SDI Industrial Store?

---

Compra rápido, seguro y sencillo

La mejor calidad de servicio

Garantía directa con nosotros

Envíos Gratis en compras mayores a $ 650.00

Productos recomendados

•

  ---

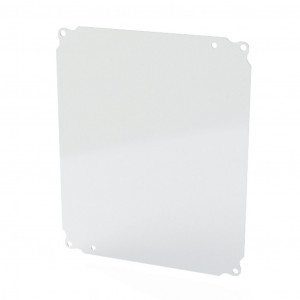

  SAGINAW SUBPANEL, CARBON STEEL, WHITE, P

  SAGINAW SUBPANEL, CARBON STEEL, WHITE, POWDER COAT FINISH. FOR USE WITH SCE-1210XELJXX, SCE-1210XCHNF, SCE-1210XSC AND SCE-12PBHX ENCLOSURES.

  SAGINAW SUBPANEL, CARBON STEEL, WHITE, POWDER COAT FINISH. FOR USE WITH SCE-1210XELJXX, SCE-1210XCHNF, SCE-1210XSC AND SCE-12PBHX ENCLOSURES.

  Precio no incluye IVA

  SCE-12P10



  $15.00 USD
•

  ---

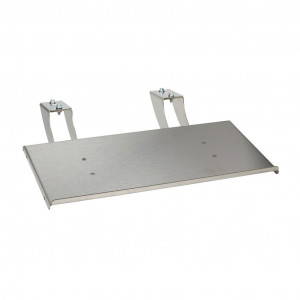

  SAGINAW HMI KEYBOARD SHELF, 18IN WIDTH,
