[3% off $596.00 ] PROTOS X COMPACT BUS COUPLER, 24 VDC, (1
$578.12USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

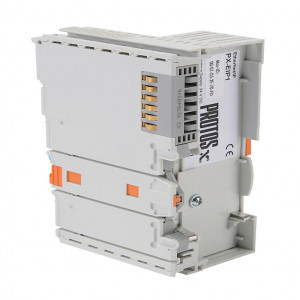

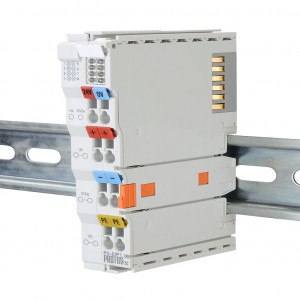

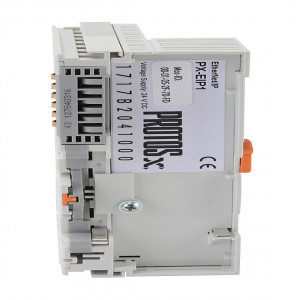

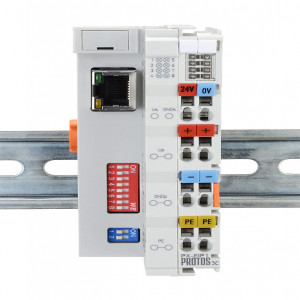

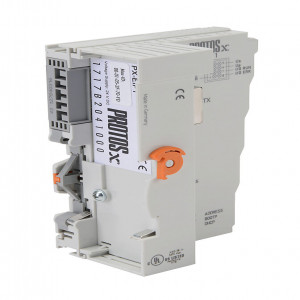

PROTOS X COMPACT BUS COUPLER, 24 VDC, (1) ETHERNET (RJ45) PORT(S), ETHERNET/IP, 10/100 MBPS. FOR USE WITH PROTOS X I/O SYSTEMS.
Fecha Entrega:
Precio (no incluye IVA):
$578.12USD
Atributos del producto
| Brand | Protos X |
|---|---|
| Item | Compact bus coupler |
| Voltage Rating | 24 VDC |
| Number of Ports | 1 |
| Communication Port and Connection Type(s) | (1) Ethernet (RJ45) port(s) |
| Port Protocol(s) | EtherNet/IP implicit messaging adapter |
| Port Speed(s) | 10/100 Mbps |
|---|---|
| Number of Bus Terminals Supported | 64 per assembly, 255 with I/O bus expansion (based on power budget) |
| Number of Discrete Inputs/Outputs | 1020 inputs/1020 outputs with 255 terminals |
| Number of Analog Inputs/Outputs | 128 total |
| Maximum Number of Data Bytes | 512 input bytes/512 output bytes |
| For Use With | Protos X I/O systems |
