PSV5-25S

[4% off $74.00 ] RHINO PSV SERIES SWITCHING POWER SUPPLY,

$71.04USD

Precio no incluye IVA

DESCUENTO EXCLUSIVO TIENDA EN LINEA

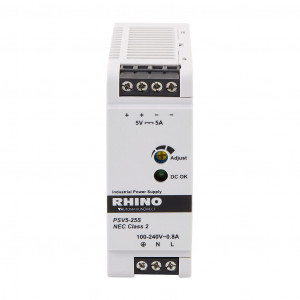

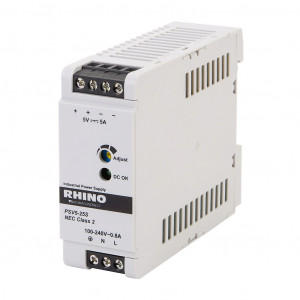

RHINO PSV SERIES SWITCHING POWER SUPPLY, 5-5.5 VDC OUTPUT, 5A, 25W, 120/240 VAC OR 120-375 VDC NOMINAL INPUT, 1-PHASE, ENCLOSED, PLASTIC HOUSING, 35MM DIN RAIL MOUNT, SCREW TERMINALS, NEC CLASS 2.

Modelo: PSV5-25S

Documentos:

PSV5-25S 2D Drawing

Product Line Brochure

Category 2D Drawings

Product Cut Sheet

Power Supply Instructions

PSV5-25S STP 3D Model

Technical Specifications

ENVIO GRATIS en compras mayores a $650.00 USD.

1 AÑO de Garantía SDI

Fecha Entrega:

Debug Url: "https://proyectos.sdindustrial.com.mx/apps/tienda/StockAutomation/fechaentrega.php?vcModelo=PSV5-25S"

Debug Cantidad: "82"

Debug Mensaje: "Disponible"

Debug FechaEmbarque: "Lunes, 08 de Diciembre de 2025"

Debug Fabricante: "AutomationDirect"

Debug idFabricante: "190"

Debug idProveedor: "106"

Lunes, 08 de Diciembre de 2025

											*** Condición ejecutada: Entró en Disponible + AutomationDirect ***
											*** ocultaCompra:  ***

Precio (no incluye IVA):

$71.04USD

Cantidad:

Atributos Arriba

Atributos del producto

Brand	RHINO
Item	Power supply
Series	PSV
Power Supply Type	Switching
Efficiency	82% @115 VAC and 230 VAC
Output Configuration	Single output

Nominal Output Voltage	5 VDC (adjustable)
Output Voltage Range	5-5.5 VDC
Amperage Rating	5A
Output Power	25W
Nominal Input Voltage	120/240 VAC or 120-375 VDC
Input voltage range	85-264 VAC/120-375 VDC
Number of Input Phases	1
Protection Type(s)	overvoltage short circuit overload
Remote On/Off	No
Voltage Monitoring	Yes
Enclosure Type	Enclosed
Housing Material	Plastic
IP Rating	IP20
Mounting	35mm DIN rail
Connector Type	Screw terminals
NEC Class 2	Yes
Integrated UPS Battery Control	No
Operating Temperature	-20 to 70 deg
