PSV24-480S

[4% off $226.00 ] RHINO PSV SERIES SWITCHING POWER SUPPLY,

$216.96USD

Precio no incluye IVA

DESCUENTO EXCLUSIVO TIENDA EN LINEA

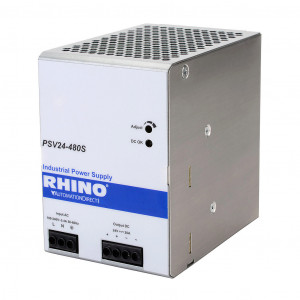

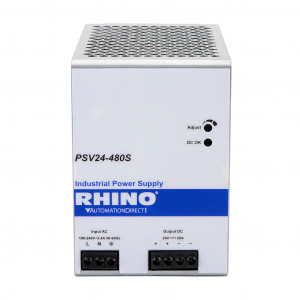

RHINO PSV SERIES SWITCHING POWER SUPPLY, 22-28 VDC OUTPUT, 20A, 480W, 120/240 VAC OR 120-375 VDC NOMINAL INPUT, 1-PHASE, ENCLOSED, METAL HOUSING, 35MM DIN RAIL MOUNT, SCREW TERMINALS.

Modelo: PSV24-480S

Documentos:

PSV24-480S 2D Drawing

Product Line Brochure

Category 2D Drawings

Product Advisory

Product Cut Sheet

Power Supply Instructions

PSV24-480S STP 3D Model

Technical Specifications

ENVIO GRATIS en compras mayores a $650.00 USD.

1 AÑO de Garantía SDI

Fecha Entrega:

Debug Url: "https://proyectos.sdindustrial.com.mx/apps/tienda/StockAutomation/fechaentrega.php?vcModelo=PSV24-480S"

Debug Cantidad: "88"

Debug Mensaje: "Disponible"

Debug FechaEmbarque: "Lunes, 08 de Diciembre de 2025"

Debug Fabricante: "AutomationDirect"

Debug idFabricante: "190"

Debug idProveedor: "106"

Lunes, 08 de Diciembre de 2025

											*** Condición ejecutada: Entró en Disponible + AutomationDirect ***
											*** ocultaCompra:  ***

Precio (no incluye IVA):

$216.96USD

Cantidad:

Atributos Arriba

Atributos del producto

Brand	RHINO
Item	Power supply
Series	PSV
Power Supply Type	Switching
Efficiency	85% @115 VAC, 88% @230 VAC
Output Configuration	Single output

Nominal Output Voltage	24 VDC (adjustable)
Output Voltage Range	22-28 VDC
Amperage Rating	20A
Output Power	480W
Nominal Input Voltage	120/240 VAC or 120-375 VDC
Input voltage range	85-264 VAC/120-375 VDC
Number of Input Phases	1
Protection Type(s)	overvoltage short circuit overload
Remote On/Off	No
Voltage Monitoring	Yes
Enclosure Type	Enclosed
Housing Material	Metal
IP Rating	IP20

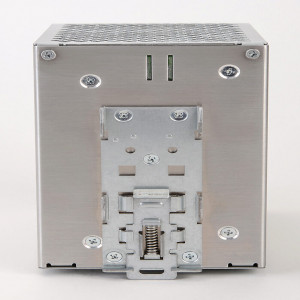

Mounting	35mm DIN rail
Connector Type	Screw terminals
NEC Class 2	No
Integrated UPS Battery Control	No
Operating Temperature	-20 to 70 deg
