PSRP-24-120

[4% off $208.00 ] RHINO PRO PSRP SERIES SWITCHING POWER SU

$199.68USD

Precio no incluye IVA

DESCUENTO EXCLUSIVO TIENDA EN LINEA

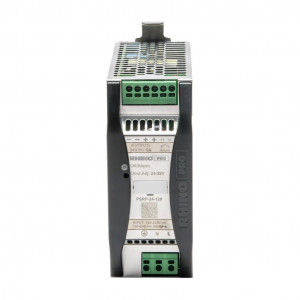

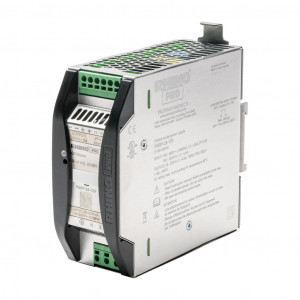

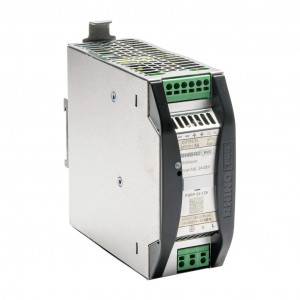

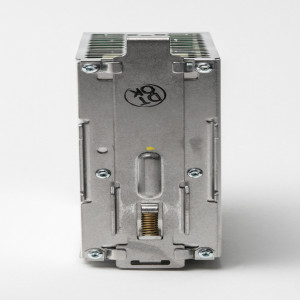

RHINO PRO PSRP SERIES SWITCHING POWER SUPPLY, 24 VDC @ 5A/120W (ADJUSTABLE), 120/240 VAC NOMINAL INPUT, 1-PHASE, ENCLOSED, ALUMINUM HOUSING, 35MM DIN RAIL MOUNT, PUSH-IN SPRING.

Modelo: PSRP-24-120

Documentos:

PSRP-24-120 2D Drawing

Product Line Brochure

Product Cut Sheet

Power Supply Insert

PSRP-24-120 STP 3D Model

Technical Specifications

ENVIO GRATIS en compras mayores a $650.00 USD.

1 AÑO de Garantía SDI

Fecha Entrega:

Debug Url: "https://proyectos.sdindustrial.com.mx/apps/tienda/StockAutomation/fechaentrega.php?vcModelo=PSRP-24-120"

Debug Cantidad: "15"

Debug Mensaje: "Disponible"

Debug FechaEmbarque: "Lunes, 08 de Diciembre de 2025"

Debug Fabricante: "AutomationDirect"

Debug idFabricante: "499"

Debug idProveedor: "106"

Lunes, 08 de Diciembre de 2025

											*** Condición ejecutada: Entró en Disponible + AutomationDirect ***
											*** ocultaCompra:  ***

Precio (no incluye IVA):

$199.68USD

Cantidad:

Atributos Arriba

Atributos del producto

Brand	RHINO PRO
Item	Power supply
Series	PSRP
Power Supply Type	Switching
Efficiency	92.8\% @115VAC, 94.3\% @230VAC
Output Configuration	Single output

Output	24 VDC @ 5A/120W (adjustable)
Output Voltage Range	24-28 VDC
Input voltage range	85-265 VAC/90-250 VDC
Input Voltage Selection Type	Automatic
Number of Input Phases	1
Protection Type(s)	overvoltage short circuit over-temperature
Remote On/Off	No
Voltage Monitoring	Yes
Enclosure Type	Enclosed
Housing Material	Aluminum
IP Rating	IP20
Mounting	35mm DIN rail
Connector Type	Push-in spring
NEC Class 2	No
Integrated UPS Battery Control	No
Operating Temperature	-40 to +70 deg C
Power Boost	150\% for 4s
