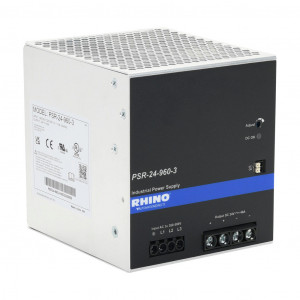

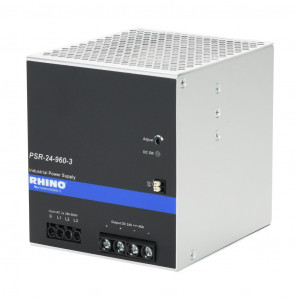

PSR-24-960-3

[4% off $582.00 ] RHINO PSR SERIES SWITCHING POWER SUPPLY,

$558.72USD

Precio no incluye IVA

DESCUENTO EXCLUSIVO TIENDA EN LINEA
RHINO PSR SERIES SWITCHING POWER SUPPLY, 24 VDC @ 40A/960W (ADJUSTABLE), 480 VAC NOMINAL INPUT, 3-PHASE, ENCLOSED, ALUMINUM HOUSING, 35MM DIN RAIL MOUNT, SCREW TERMINALS.

Modelo: PSR-24-960-3

Documentos:

PSR-24-960-3 2D Drawing

Product Line Brochure

Power Supply Installation Instructions

Product Cut Sheet

PSR-24-960-3 STP 3D Model

Technical Specifications

ENVIO GRATIS en compras mayores a $650.00 USD.

1 AÑO de Garantía SDI

Fecha Entrega:

Debug Url: "https://proyectos.sdindustrial.com.mx/apps/tienda/StockAutomation/fechaentrega.php?vcModelo=PSR-24-960-3"

Debug Cantidad: "13"

Debug Mensaje: "Disponible"

Debug FechaEmbarque: "Lunes, 08 de Diciembre de 2025"

Debug Fabricante: "AutomationDirect"

Debug idFabricante: "190"

Debug idProveedor: "106"

Lunes, 08 de Diciembre de 2025

											*** Condición ejecutada: Entró en Disponible + AutomationDirect ***
											*** ocultaCompra:  ***

Precio (no incluye IVA):

$558.72USD

Cantidad:

Atributos Arriba

Atributos del producto

Brand	RHINO
Item	Power supply
Series	PSR
Power Supply Type	Switching
Efficiency	94.5\% @ 3x400 VAC and 500 VAC
Output Configuration	Single output

Output	24 VDC @ 40A/960W (adjustable)
Output Voltage Range	24-28 VDC
Input voltage range	320-575 VAC
Input Voltage Selection Type	Automatic
Number of Input Phases	3
Protection Type(s)	overvoltage overcurrent short circuit over-temperature
Remote On/Off	No
Voltage Monitoring	Yes
Enclosure Type	Enclosed
Housing Material	Aluminum
IP Rating	IP20
Mounting	35mm DIN rail
Connector Type	Screw terminals
NEC Class 2	No
Integrated UPS Battery Control	No
Operating Temperature	-25 to 70 deg C
