[18% off $432.00 ] RHINO PRO PSN SERIES SWITCHING POWER SUP
$354.24USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

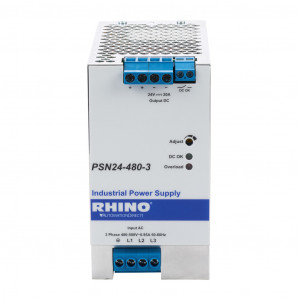

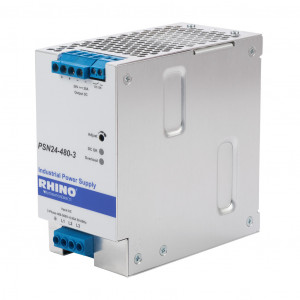

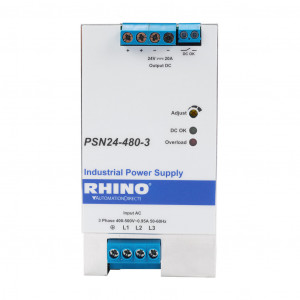

RHINO PRO PSN SERIES SWITCHING POWER SUPPLY, 24-28 VDC OUTPUT, 20A, 480W, 480 VAC NOMINAL INPUT, 3-PHASE, ENCLOSED, ALUMINUM HOUSING, 35MM DIN RAIL MOUNT, SCREW TERMINALS.
Modelo: PSN24-480-3
Miércoles, 22 de Enero de 2025
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Lunes, 09 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$354.24USD
Atributos del producto
| Brand | RHINO PRO |
|---|---|
| Item | Power supply |
| Series | PSN |
| Power Supply Type | Switching |
| Efficiency | 95% @3x400 VAC and 500 VAC |
| Output Configuration | Single output |
| Nominal Output Voltage | 24 VDC (adjustable) |
|---|---|
| Output Voltage Range | 24-28 VDC |
| Amperage Rating | 20A |
| Output Power | 480W |
| Nominal Input Voltage | 480 VAC |
| Input voltage range | 320-575 VAC/450-800 VDC |
| Number of Input Phases | 3 |
| Protection Type(s) |
|
| Remote On/Off | No |
| Voltage Monitoring | Yes |
| Enclosure Type | Enclosed |
| Housing Material | Aluminum |
| IP Rating | IP20 |
| Mounting | 35mm DIN rail |
| Connector Type | Screw terminals |
| NEC Class 2 | No |
| Integrated UPS Battery Control | No |
| Operating Temperature | -25 to 70 deg C |
| Power Boost | 150% for 7s |
