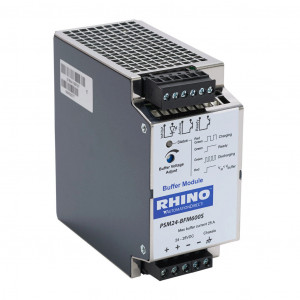

[4% off $369.00 ] RHINO BUFFER MODULE, 1 INPUT, 24 VDC NOM
$354.24USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA
RHINO BUFFER MODULE, 1 INPUT, 24 VDC NOMINAL INPUT, 22-28 VDC OUTPUT, 25A, POTENTIOMETER, ALARM CONTACT FOR OPERATION MONITORING, REMOVABLE SCREW TERMINALS. REQUIRES 24 VDC POWER SUPPLY.
Fecha Entrega:
Precio (no incluye IVA):
$354.24USD
Atributos del producto
| Brand | RHINO |
|---|---|
| Item | Buffer module |
| Number of Inputs | 1 |
| Nominal Input Voltage | 24 VDC |
| Input voltage range | 24 VDC |
| Nominal Output Voltage | 24 VDC |
| Output Voltage Range | 22-28 VDC |
|---|---|
| Amperage Rating | 25A |
| Start Buffering Voltage Adjustment | Potentiometer |
| Buffer Time | 200 msec hold-up at 25A or 4 seconds at 1.2A |
| Indicating Type | Dual color LED for status indication |
| Alarm Contact for Operation Monitoring | Yes |
| Remote On/Off | Yes |
| Housing Material | Metal |
| Mounting | 35mm DIN rail |
| Connector Type | Removable screw terminals |
| Requires | 24 VDC power supply |
| DataSheet | https |
