PSH-BCM360S

[4% off $355.00 ] RHINO BATTERY CONTROL MODULE, 2 INPUTS,

$340.8USD

Precio no incluye IVA

DESCUENTO EXCLUSIVO TIENDA EN LINEA

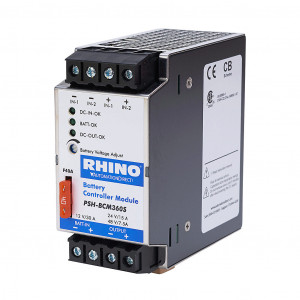

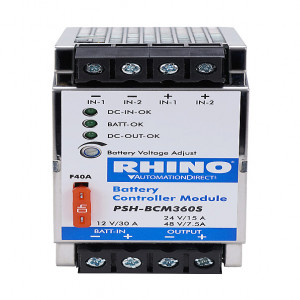

RHINO BATTERY CONTROL MODULE, 2 INPUTS, 24/48 VDC NOMINAL INPUT, 23-27 VDC / 47-55 VDC OUTPUT, 15A AT 24 VDC, 7.5A AT 48 VDC, ALARM CONTACT FOR OPERATION MONITORING, SCREW TERMINALS. REQUIRES POWER SUPPLY, 12V BATTERY (USER-SUPPLIED).

Modelo: PSH-BCM360S

Documentos:

PSH-BCM360S 2D Drawing

Product Line Brochure

Category 2D Drawings

Product Cut Sheet

PSH-BCM360S Power Supply Insert

PSH-BCM360S STP 3D Model

Technical Specifications

ENVIO GRATIS en compras mayores a $650.00 USD.

1 AÑO de Garantía SDI

Fecha Entrega:

Debug Url: "https://proyectos.sdindustrial.com.mx/apps/tienda/StockAutomation/fechaentrega.php?vcModelo=PSH-BCM360S"

Debug Cantidad: "24"

Debug Mensaje: "Disponible"

Debug FechaEmbarque: "Lunes, 08 de Diciembre de 2025"

Debug Fabricante: "AutomationDirect"

Debug idFabricante: "190"

Debug idProveedor: "106"

Lunes, 08 de Diciembre de 2025

											*** Condición ejecutada: Entró en Disponible + AutomationDirect ***
											*** ocultaCompra:  ***

Precio (no incluye IVA):

$340.8USD

Cantidad:

Atributos Arriba

Atributos del producto

Brand	RHINO
Item	Battery control module
Number of Inputs	2
Nominal Input Voltage	24/48 VDC
Input voltage range	24-28 VDC / 48-56 VDC
Nominal Output Voltage	24/48 VDC

Output Voltage Range	23-27 VDC / 47-55 VDC
Amperage Rating	15A at 24 VDC, 7.5A at 48 VDC
Protection Type(s)	overvoltage overcurrent battery overcharge reverse polarity
Indicating Type	Single color LED for status indication and (3) output signals

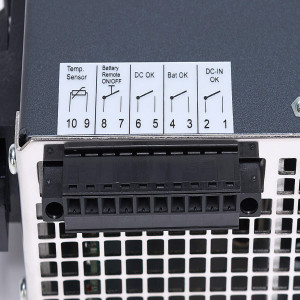

Alarm Contact for Operation Monitoring	Yes
Remote On/Off	Yes
Housing Material	Metal
Mounting	35mm DIN rail
Connector Type	Screw terminals
Requires	Power supply, 12V battery (user-supplied)
