PSH-48-120

[4% off $244.00 ] RHINO PRO PSH SERIES SWITCHING POWER SUP

$234.24USD

Precio no incluye IVA

DESCUENTO EXCLUSIVO TIENDA EN LINEA

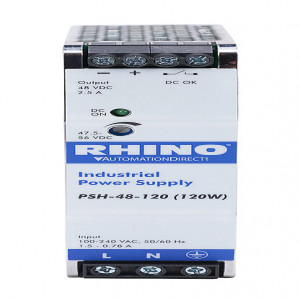

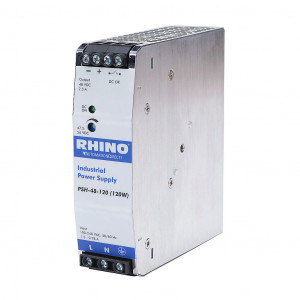

RHINO PRO PSH SERIES SWITCHING POWER SUPPLY, 47.5-56 VDC OUTPUT, 2.5A, 120W, 120/240 VAC NOMINAL INPUT, 1-PHASE, ENCLOSED, METAL HOUSING, 35MM DIN RAIL MOUNT, SCREW TERMINALS, HAZARDOUS LOCATION RATED.

Modelo: PSH-48-120

Documentos:

PSH-48-120 2D Drawing

Product Line Brochure

Category 2D Drawings

Product Cut Sheet

Power Supply Instructions

PSH-48-120 STP 3D Model

Technical Specifications

ENVIO GRATIS en compras mayores a $650.00 USD.

1 AÑO de Garantía SDI

Fecha Entrega:

Debug Url: "https://proyectos.sdindustrial.com.mx/apps/tienda/StockAutomation/fechaentrega.php?vcModelo=PSH-48-120"

Debug Cantidad: "63"

Debug Mensaje: "Disponible"

Debug FechaEmbarque: "Lunes, 08 de Diciembre de 2025"

Debug Fabricante: "AutomationDirect"

Debug idFabricante: "190"

Debug idProveedor: "106"

Lunes, 08 de Diciembre de 2025

											*** Condición ejecutada: Entró en Disponible + AutomationDirect ***
											*** ocultaCompra:  ***

Precio (no incluye IVA):

$234.24USD

Cantidad:

Atributos Arriba

Atributos del producto

Brand	RHINO PRO
Item	Power supply
Series	PSH
Power Supply Type	Switching
Efficiency	93% @115 VAC, 94% @230 VAC
Output Configuration	Single output

Nominal Output Voltage	48 VDC (adjustable)
Output Voltage Range	47.5-56 VDC
Amperage Rating	2.5A
Output Power	120W
Nominal Input Voltage	120/240 VAC
Input voltage range	85-264 VAC
Number of Input Phases	1
Protection Type(s)	overvoltage short circuit overload over-temperature
Remote On/Off	No
Voltage Monitoring	Yes
Enclosure Type	Enclosed
Housing Material	Metal
IP Rating	IP20
Mounting	35mm DIN rail
Connector Type	Screw terminals
NEC Class 2	No
Integrated UPS Battery Control	No
Operating Temperature	-40 to +70 deg C
Power Boost	150% for 4s
Application	Hazardous location rated
