PSFA12-060-U

[4% off $65.00 ] RHINO SELECT PSFA SERIES SWITCHING POWER

$62.4USD

Precio no incluye IVA

DESCUENTO EXCLUSIVO TIENDA EN LINEA

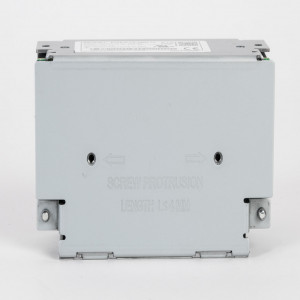

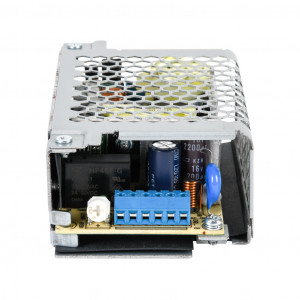

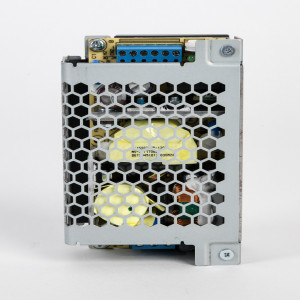

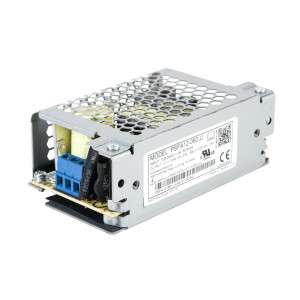

RHINO SELECT PSFA SERIES SWITCHING POWER SUPPLY, 13.5-14 VDC OUTPUT, 4.3A, 60W, 120-240 VAC NOMINAL INPUT, 1-PHASE, OPEN FRAME, GALVANIZED STEEL HOUSING, PANEL MOUNT, SCREW TERMINALS.

Modelo: PSFA12-060-U

Documentos:

PSFA12-060-U 2D Drawing

Product Line Brochure

Category 2D Drawing

Product Cut Sheet

Power Supply Installation Instructions Insert

PSFA12-060-U STP 3D Model

Technical Specifications

ENVIO GRATIS en compras mayores a $650.00 USD.

1 AÑO de Garantía SDI

Fecha Entrega:

Debug Url: "https://proyectos.sdindustrial.com.mx/apps/tienda/StockAutomation/fechaentrega.php?vcModelo=PSFA12-060-U"

Debug Cantidad: "126"

Debug Mensaje: "Disponible"

Debug FechaEmbarque: "Lunes, 08 de Diciembre de 2025"

Debug Fabricante: "AutomationDirect"

Debug idFabricante: "190"

Debug idProveedor: "106"

Lunes, 08 de Diciembre de 2025

											*** Condición ejecutada: Entró en Disponible + AutomationDirect ***
											*** ocultaCompra:  ***

Precio (no incluye IVA):

$62.4USD

Cantidad:

Atributos Arriba

Atributos del producto

Brand	RHINO SELECT
Item	Power supply
Series	PSFA
Power Supply Type	Switching
Efficiency	85% @115 VAC, 86% @230 VAC
Output Configuration	Single output

Nominal Output Voltage	13.8 VDC (adjustable)
Output Voltage Range	13.5-14 VDC
Amperage Rating	4.3A
Output Power	60W
Nominal Input Voltage	120-240 VAC
Input voltage range	90-264 VAC
Number of Input Phases	1
Protection Type(s)	overvoltage short circuit overload over-temperature
Remote On/Off	No
Voltage Monitoring	Yes
Enclosure Type	Open frame
Housing Material	Galvanized steel
IP Rating	IP10
Mounting	Panel
Connector Type	Screw terminals
NEC Class 2	No
Integrated UPS Battery Control	Yes
Operating Temperature	-20 to 70 deg C
