PSD24-240-L

[4% off $508.00 ] RHINO PRO PSD SERIES SWITCHING POWER SUP

$487.68USD

Precio no incluye IVA

DESCUENTO EXCLUSIVO TIENDA EN LINEA

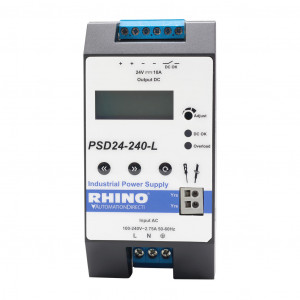

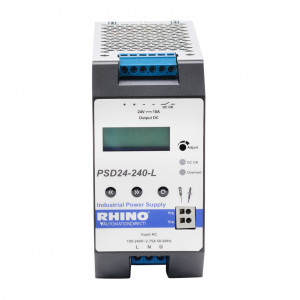

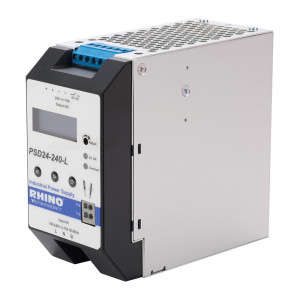

RHINO PRO PSD SERIES SWITCHING POWER SUPPLY, 24-28 VDC OUTPUT, 10A, 240W, 120/240 VAC OR 110-300VDC NOMINAL INPUT, 1-PHASE, ENCLOSED, ALUMINUM HOUSING, LCD DISPLAY, 35MM DIN RAIL MOUNT, SCREW TERMINALS.

Modelo: PSD24-240-L

Documentos:

PSD24-240-L 2D Drawing

Product Line Brochure

Category 2D Drawings

Product Cut Sheet

Switching Power Supply Instructions Insert

PSD24-240-L STP 3D Model

Technical Specifications

ENVIO GRATIS en compras mayores a $650.00 USD.

1 AÑO de Garantía SDI

Fecha Entrega:

Debug Url: "https://proyectos.sdindustrial.com.mx/apps/tienda/StockAutomation/fechaentrega.php?vcModelo=PSD24-240-L"

Debug Cantidad: "18"

Debug Mensaje: "Disponible"

Debug FechaEmbarque: "Lunes, 08 de Diciembre de 2025"

Debug Fabricante: "AutomationDirect"

Debug idFabricante: "190"

Debug idProveedor: "106"

Lunes, 08 de Diciembre de 2025

											*** Condición ejecutada: Entró en Disponible + AutomationDirect ***
											*** ocultaCompra:  ***

Precio (no incluye IVA):

$487.68USD

Cantidad:

Atributos Arriba

Atributos del producto

Brand	RHINO PRO
Item	Power supply
Series	PSD
Power Supply Type	Switching
Efficiency	92% @120 VAC, 94% @230 VAC
Output Configuration	Single output

Nominal Output Voltage	24 VDC (adjustable)
Output Voltage Range	24-28 VDC
Amperage Rating	10A
Output Power	240W
Nominal Input Voltage	120/240 VAC or 110-300VDC
Input voltage range	85-276 VAC/88-375 VDC
Number of Input Phases	1
Protection Type(s)	overvoltage short circuit over-temperature
Remote On/Off	No
Voltage Monitoring	Yes
Enclosure Type	Enclosed
Housing Material	Aluminum
IP Rating	IP20
Mounting	35mm DIN rail
Connector Type	Screw terminals
NEC Class 2	No
Integrated UPS Battery Control	No
Operating Temperature	-25 to 70 deg C
Display Type	LCD
Power Boost	150% for 7s
