PSB24-100-N

[4% off $109.00 ] RHINO SELECT PSB SERIES SWITCHING POWER

$104.64USD

Precio no incluye IVA

DESCUENTO EXCLUSIVO TIENDA EN LINEA

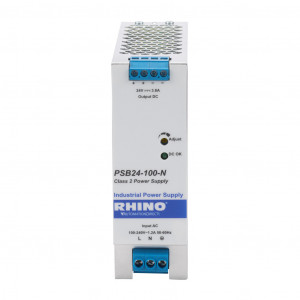

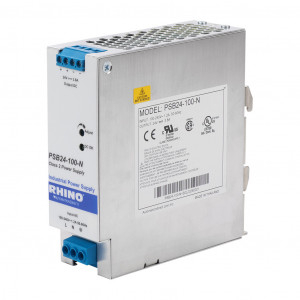

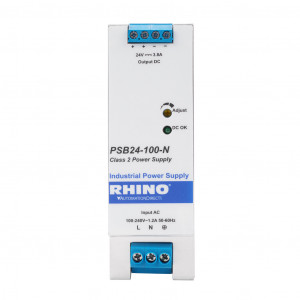

RHINO SELECT PSB SERIES SWITCHING POWER SUPPLY, 22-24 VDC OUTPUT, 3.8A, 91.2W, 120/240 VAC OR 120-375 VDC NOMINAL INPUT, 1-PHASE, ENCLOSED, ALUMINUM HOUSING, 35MM DIN RAIL MOUNT, SCREW TERMINALS, NEC CLASS 2.

Modelo: PSB24-100-N

Documentos:

PSB24-100-N 2D Drawing

Product Line Brochure

Category 2D Drawings

Product Advisory

Product Cut Sheet

Switching Power Supply Instructions Insert

PSB24-100-N STP 3D Model

Technical Specifications

ENVIO GRATIS en compras mayores a $650.00 USD.

1 AÑO de Garantía SDI

Fecha Entrega:

Debug Url: "https://proyectos.sdindustrial.com.mx/apps/tienda/StockAutomation/fechaentrega.php?vcModelo=PSB24-100-N"

Debug Cantidad: "38"

Debug Mensaje: "Disponible"

Debug FechaEmbarque: "Lunes, 08 de Diciembre de 2025"

Debug Fabricante: "AutomationDirect"

Debug idFabricante: "190"

Debug idProveedor: "106"

Lunes, 08 de Diciembre de 2025

											*** Condición ejecutada: Entró en Disponible + AutomationDirect ***
											*** ocultaCompra:  ***

Precio (no incluye IVA):

$104.64USD

Cantidad:

Atributos Arriba

Atributos del producto

Brand	RHINO SELECT
Item	Power supply
Series	PSB
Power Supply Type	Switching
Efficiency	88% @115 VAC, 89% @230 VAC
Output Configuration	Single output

Nominal Output Voltage	24 VDC (adjustable)
Output Voltage Range	22-24 VDC
Amperage Rating	3.8A
Output Power	91.2W
Nominal Input Voltage	120/240 VAC or 120-375 VDC
Input voltage range	85-264 VAC/120-375 VDC
Number of Input Phases	1
Protection Type(s)	overvoltage short circuit over-temperature
Remote On/Off	No
Voltage Monitoring	Yes
Enclosure Type	Enclosed
Housing Material	Aluminum
IP Rating	IP20
Mounting	35mm DIN rail
Connector Type	Screw terminals
NEC Class 2	Yes
Integrated UPS Battery Control	No
Operating Temperature	-25 to 80 deg C
