[2% off $676.00 ] GEFRAN POTENTIOMETER LINEAR POSITION SEN
$662.48USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

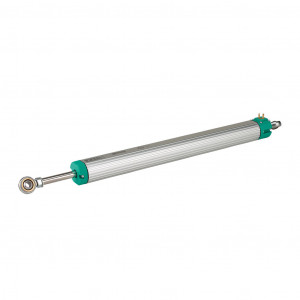

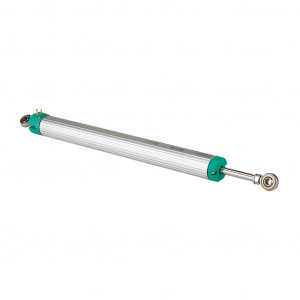

GEFRAN POTENTIOMETER LINEAR POSITION SENSOR, SLIDE, 225MM STROKE, 10MM SHAFT DIAMETER, 32 X 35 X 356.5MM BODY, ROD EYES MOUNT, 8MM DIN 43650 FORM C.
Este producto incluye
Envío gratis
* Aplican restricciones
Fecha Entrega:
Precio (no incluye IVA):
$662.48USD
Atributos del producto
| Brand | Gefran |
|---|---|
| Item | Linear position sensor |
| Transducer Type | Potentiometer |
| Action | Slide |
| Stroke | 225mm |
| Shaft Diameter | 10mm |
| Resistance | 5k ohm |
|---|---|
| Housing Material | Anodized aluminum |
| Housing Size | 32 x 35 x 356.5mm body |
| Sensor Resolution | Infinite |
| Linearity | +/- 0.05% |
| Switching Cycles | 25,000,000 cycles |
| Mounting | Rod eyes |
| IP Rating | IP65 |

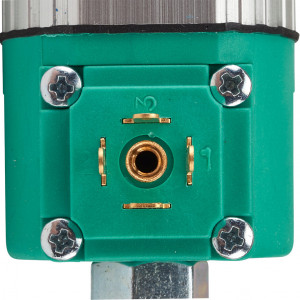

| Connection | 8mm DIN 43650 Form C |
| Number of Wires | 4 |
