[5% off $46.00 ] NITRA SOLENOID VALVE, 3-WAY, 2-POSITION,
$43.7USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

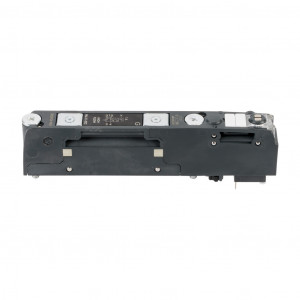

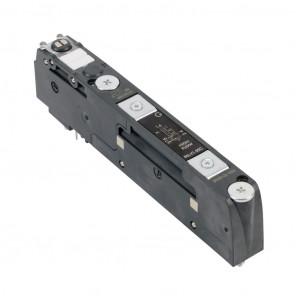

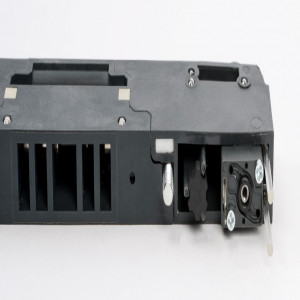

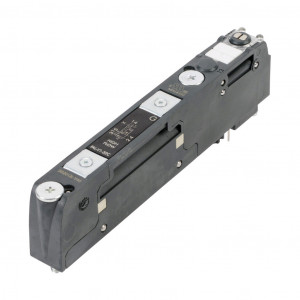

NITRA SOLENOID VALVE, 3-WAY, 2-POSITION, 1 HIGH-FLOW N.C., SINGLE SOLENOID SPRING RETURN, REINFORCED TECHNOPOLYMER BODY, IP65, LOCKING MANUAL OVERRIDE, CV=1.28, 12-24 VDC.
Modelo: PAL-V1-32C
Entrega estimada:
Viernes, 27 de Junio de 2025
Precio (no incluye IVA):
$43.7USD
Atributos del producto
| Brand | NITRA |
|---|---|
| Item | Valve |
| Working Fluid | Pneumatic |
| Valve Type | Solenoid directional control |
| Port Quantity | 3-way |
| Number Of Positions | 2 |
| Valve Configuration | 1 high-flow N.C. |
|---|---|
| Action | Single solenoid spring return |
| Body Material | Reinforced technopolymer |
| IP Rating | IP65 |
| Manual Override Type | Locking |
| Flow Coefficient | 1.28 |
| Operating Voltage | 12-24 VDC |
| Indicating Type | LED indication |
| For Use With | PAL series |
| Includes | Mounting hardware |
| Requires | PAL series valve base |
