[14% off $529.00 ] NITRA ANALOG OUTPUT MODULE, 4-CHANNEL, C
$454.94USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

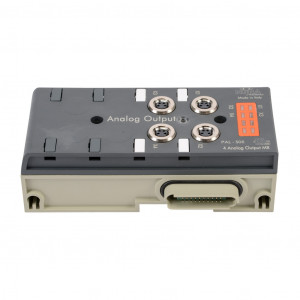

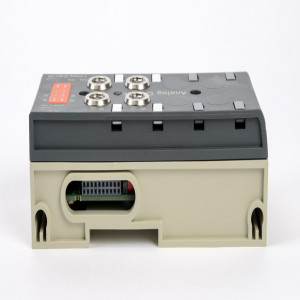

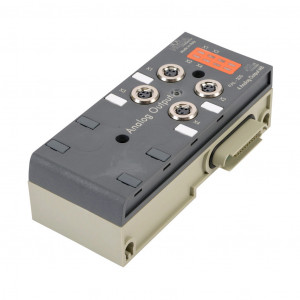

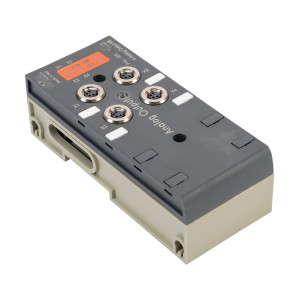

NITRA ANALOG OUTPUT MODULE, 4-CHANNEL, CURRENT/VOLTAGE, 15-BIT, OUTPUT CURRENT SIGNAL RANGE(S) OF 0-20 MA AND 4-20 MA, OUTPUT VOLTAGE SIGNAL RANGE(S) OF 0-5 VDC, +/- 5 VDC, 0-10 VDC AND +/- 10 VDC, IP65.
Modelo: PAL-S05
Jueves, 28 de Noviembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Lunes, 02 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$454.94USD
Atributos del producto
| Brand | NITRA |
|---|---|
| Item | Output module |
| I/O Module Type | Analog |
| Number Of Output Channels | 4 |
| Output Signal Type | Current/voltage |
| Isolated Channels | No |
| Number of Non-Isolated Output Commons | 1 |
|---|---|
| Output Resolution | 15-bit |
| Output Current Signal Range | 0-20 mA and 4-20 mA |
| Output Voltage Signal Range | 0-5 VDC, +/- 5 VDC, 0-10 VDC and +/- 10 VDC |
| IP Rating | IP65 |
| For Use With | PAL series |
| Includes | Mounting hardware |
| Requires | PAL-EIP bus coupler |
| Programming Software | NITRA PAL configuration software v1.0 or later |
| Additional Information | All ports require connectors or caps to maintain IP rating |
