[14% off $410.00 ] NITRA ANALOG INPUT MODULE, 4-CHANNEL, CU
$352.6USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

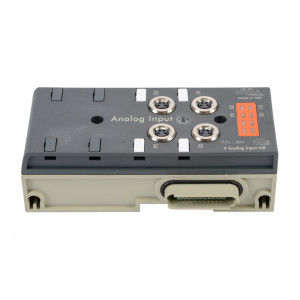

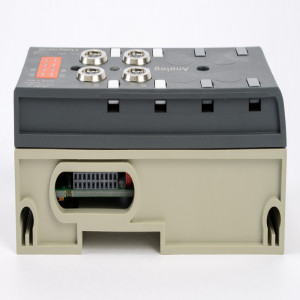

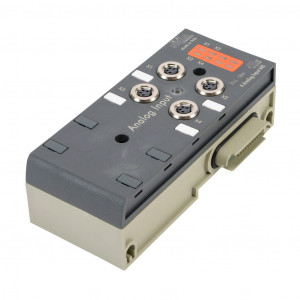

NITRA ANALOG INPUT MODULE, 4-CHANNEL, CURRENT/VOLTAGE, 15-BIT, INPUT CURRENT SIGNAL RANGE(S) OF 0-20 MA, 4-20 MA, INPUT VOLTAGE SIGNAL RANGE(S) OF 0-5 VDC, 0-10 VDC, +/- 5 VDC, +/- 10 VDC, IP65.
Modelo: PAL-S04
Viernes, 29 de Noviembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Martes, 03 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$352.6USD
Atributos del producto
| Brand | NITRA |
|---|---|
| Item | Input module |
| I/O Module Type | Analog |
| Number Of Input Channels | 4 |
| Input Signal Type(s) | Current/voltage |
| Isolated Channels | No |
| Number of Non-Isolated Input Commons | 1 |
|---|---|
| Input Resolution | 15-bit |
| Input Current Signal Range | 0-20 mA, 4-20 mA |
| Input Voltage Signal Range | 0-5 VDC, 0-10 VDC, +/- 5 VDC, +/- 10 VDC |
| IP Rating | IP65 |
| For Use With | PAL series |
| Includes | Mounting hardware |
| Requires | PAL-EIP bus coupler |
| Programming Software | NITRA PAL configuration software v1.0 or later |
| Additional Information | All ports require connectors or caps to maintain IP rating |
