[14% off $376.00 ] NITRA DISCRETE OUTPUT MODULE, 6-POINT, 1
$323.36USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

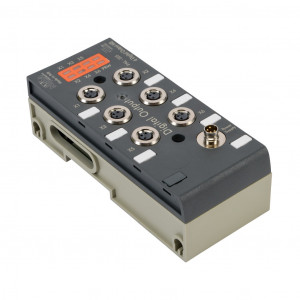

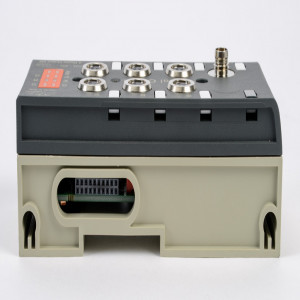

NITRA DISCRETE OUTPUT MODULE, 6-POINT, 12-24 VDC, PNP/NPN, 1 COMMON(S), 6 POINT(S) PER COMMON, 1A/POINT, 4A/COMMON, SHORT CIRCUIT AND OVERLOAD PROTECTION, IP65. MOUNTING HARDWARE INCLUDED. REQUIRES PAL-EIP BUS COUPLER AND POWER CABLE.
Modelo: PAL-S03
Viernes, 29 de Noviembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Martes, 03 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$323.36USD
Atributos del producto
| Brand | NITRA |
|---|---|
| Item | Output module |
| I/O Module Type | Discrete |
| Connector Type | 3-pin M8 (4-pin for power) |
| Number of Output Points | 6 |
| Nominal Output Voltage | 12-24 VDC |
| Discrete Output Type | PNP/NPN |
|---|---|
| Number of Non-Isolated Output Commons | 1 |
| Number of Points per Common | 6 |
| Load Current | 1A/point, 4A/common |
| Protection Type(s) |
|
| IP Rating | IP65 |
| Includes | Mounting hardware |
| Requires | PAL-EIP bus coupler and power cable |
| Programming Software | NITRA PAL configuration software v1.0 or later |
| Additional Information | All ports require connectors or caps to maintain IP rating |
